TC275TP64F200NDCLXUMA1: Features, Specs & More
If you're designing safety critical automotive or industrial systems, the Infineon TC275TP64F200NDCLXUMA1 is a powerful 32 bit AURIX MCU. It runs at up to 200 MHz, offers 4 MB flash and 472 KB RAM. In this comprehensive article, we'll delve into the intricacies of the TC275TP64F200NDCLXUMA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TC275TP64F200NDCLXUMA1's Overview
TC275TP64F200NDCLXUMA1's Manufacturer
TC275TP64F200NDCLXUMA1's Overview
The TC275TP64F200NDCLXUMA1 is a 32-bit TriCore RISC-based MCU designed by Infineon Technologies. It combines performance, safety, and efficiency in one powerful package. Developed under AEC-Q100 automotive standards, it ensures long-term reliability in harsh environments, making it ideal for use in automotive control units, industrial applications, and real-time embedded systems.
Key Features
Let's delve into the standout features that make the TC275TP64F200NDCLXUMA1 a standout in the world of electronics:
· This microcontroller operates on a 32-bit TriCore™ RISC architecture that provides high-speed processing and real-time capabilities.
· It integrates 4 megabytes of embedded Flash memory, which allows for extensive program storage and reliable execution.
· This chip is equipped with 472 kilobytes of RAM, supporting efficient data handling and buffering.
· It runs at a maximum CPU frequency of 200 MHz, ensuring fast and responsive system performance.
· The device supports a wide operating voltage range from 3.0V to 5.5V, making it flexible for various power supply configurations.
· It includes 112 general-purpose input/output pins, allowing seamless integration with peripheral components and sensors.
· This MCU features a high-resolution 12-bit ADC with 40 input channels for accurate analog signal processing.
· It is built with four CAN communication interfaces, enabling reliable in-vehicle networking and data exchange.
· A dedicated watchdog timer is included to provide system safety through fault detection and recovery mechanisms.

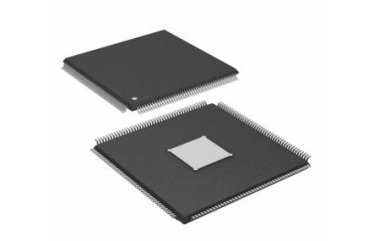

· The device is housed in a 176-pin LQFP EP package, which supports secure and space-efficient surface mounting.
· The operating temperature range extends from -40°C to 150°C, making it suitable for harsh and automotive-grade environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TC275TP64F200NDCLXUMA1:
Type | Parameter |
Family Name | AURIX |
Instruction Set Architecture | RISC |
Device Core | TriCore |
Maximum CPU Frequency (MHz) | 200 |
Maximum Clock Rate (MHz) | 200 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 4MB |
RAM Size | 472KB |
Programmability | Yes |
Interface Type | CAN |
Number of I/Os | 112 |
No. of Timers | 4 |
Number of ADCs | 1 |
ADC Channels | 40 |
ADC Resolution (bit) | 12 |
USART | 0 |
UART | 0 |
USB | 0 |
SPI | 0 |
I2C | 0 |
I2S | 0 |
CAN | 4 |
Ethernet | 0 |
Watchdog | 1 |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Power Dissipation (mW) | 1480 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.4 mm |
Package Width | 24 mm |
Package Length | 24 mm |
PCB changed | 176 |
Standard Package Name | QFP |
Supplier Package | LQFP EP |
Pin Count | 176 |
Lead Shape | Gull-wing |
* TC275TP64F200NDCLXUMA1's Datasheet
Applications
Thanks to its safety features, processing power, and robust communication interface, the TC275 is ideally suited for:
· Automotive Engine Control Units (ECUs)
· ADAS and Autonomous Driving Systems
· Chassis and Safety Modules
· Industrial Motor Control
· Real-time Embedded Systems in Robotics
TC275TP64F200NDCLXUMA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
For engineers and developers working on automotive and industrial embedded systems, the Infineon TC275TP64F200NDCLXUMA1 offers a powerful, reliable, and feature-rich microcontroller solution. Its combination of a 200 MHz TriCore CPU, expansive memory, multiple CAN channels, and automotive-grade certification makes it a standout MCU for next-generation vehicle applications. Leveraging this MCU can help you build safer, smarter, and more connected automotive systems with confidence.
