What Are Voltage References?

As electronic technology keeps advancing, voltage reference components have become absolutely essential in all kinds of electronic devices. Whether you're using your phone to measure your heart rate, monitoring battery status in an electric vehicle, or satellites are tracking climate changes, behind the scenes there's this "electronic ruler" converting real-world physical signals into precise voltage levels that digital systems can understand. This article will walk you through what voltage references are, how they work, their key features and advantages, their key parameters, and where they're used.

Catalog

I. What Are Voltage References?

II. Why Do We Need Voltage References?

III. How Do Voltage References Work?

IV. Key Features and Advantages

V. Important Parameters

VI. How to Pick the Right Voltage Reference?

VII. Applications

VIII. Conclusion

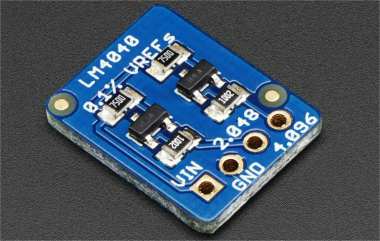

I. What Are Voltage References?

A voltage reference is an electronic component or circuit designed to provide a stable and accurate reference voltage. No matter how much the input voltage, load, or surrounding temperature changes, it keeps its output voltage steady. Because of this stability, voltage references are critical baseline standards in many precision electronic systems, making sure measurements and controls are accurate.

II. Why Do We Need Voltage References?

In any electronic system, real-world signals—whether temperature, pressure, light intensity, or chemical concentration—eventually need to be converted into voltage signals for processing. Voltage references serve as the core standard for the entire system's measurements. Think of them like the international kilogram standard but for electronics—a reliable and stable point of reference.

If a product needs to measure things like battery voltage or current, power consumption, signal levels, or detect faults, it has to compare those signals against a known standard. Every comparator, ADC (analog-to-digital converter), DAC (digital-to-analog converter), or detection circuit depends on a voltage reference to do its job. Without it, an electronic device is like a ruler with no markings—it can't measure anything accurately.

III. How Do Voltage References Work?

Most voltage references are based on the bandgap voltage reference principle. This technique uses the physical properties of semiconductor materials to combine voltage signals with opposite temperature behaviors. This combination cancels out temperature effects and produces a voltage output that's nearly constant and drifts very little with temperature. There are also voltage references based on Zener diodes or low-temperature-coefficient resistors, but bandgap references are the most common in modern electronics because of their excellent performance.

IV. Key Features and Advantages

· High Accuracy: Output voltage error is tiny, often less than 0.1%.

· Low Temperature Coefficient: Output voltage changes very little with temperature, ensuring stability in different environments.

· Low Noise: The output voltage is clean, ideal for high-precision measurements.

· Long-Term Stability: Voltage drifts minimally over time, great for systems that run continuously.

· Compact Packages: Small size fits well in space-constrained applications.

V. Important Parameters

When choosing a voltage reference, keep an eye on these five key specs:

· Initial Accuracy: Voltage offset right out of the box (±0.1% is typical for industrial-grade parts).

· Temperature Coefficient (TC): How much voltage drifts with temperature changes (top-tier parts reach as low as 3ppm/°C). Note TC isn't always linear—some parts can drift unevenly across temperatures.

· Long-Term Stability: Measured in drift over time (e.g., 2µV/√khr means about 10µV drift after a year).

· Thermal Hysteresis: How well the voltage returns to the same value after temperature cycles—a critical factor for precision instruments.

· Noise Density: Low-frequency noise (0.1–10Hz) impacts the resolution of high-performance systems.

VI. How to Pick the Right Voltage Reference?

There are mainly two types of voltage references, each suited for different scenarios:

VII. Applications

· High-Precision ADC/DAC Systems: In 24-bit Sigma-Delta ADCs, the voltage reference's long-term stability directly impacts measurement validity. For instance, X-ray detectors in medical CT scanners require reference drift under 50ppm over 10 years.

· Automotive Battery Management: In 48V hybrid systems, automotive-grade references like ADR03CRZ2 (operating -40°C to +125°C) ensure battery state-of-charge estimates stay within 1% error.

· Industrial Sensor Transmitters: 4–20mA current loops use shunt references to maintain precise current output across a wide input voltage range (12–36V).

VIII. Conclusion

The evolution of voltage reference components mirrors the electronics industry’s relentless drive for precision. From early simple Zener diode references to today's nanometer-scale integrated bandgap references, each advancement pushes the boundaries of scientific instruments, medical devices, and communication systems. As applications become more diverse and technology advances, voltage references keep improving to meet ever higher performance demands.
