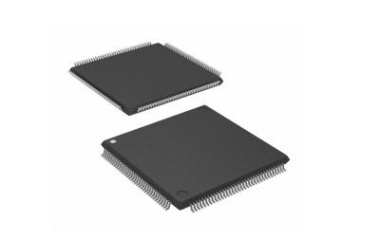

XC167CI16F40FBBKXQMA1: Features, Specs & More
When selecting a microcontroller unit (MCU) for automotive or industrial embedded applications, performance, reliability, and feature set are crucial. The Infineon Technologies XC167CI16F40FBBKXQMA1 is a powerful 16-bit MCU that integrates a unique blend of CISC, DSP, and RISC architectures, delivering versatile computing power in a compact package. In this comprehensive article, we'll delve into the intricacies of the XC167CI16F40FBBKXQMA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
XC167CI16F40FBBKXQMA1's Overview
XC167CI16F40FBBKXQMA1's Manufacturer
XC167CI16F40FBBKXQMA1's Overview
The XC167CI16F40FBBKXQMA1 is part of Infineon's XC166 family, designed primarily for automotive and industrial control systems. This 16-bit microcontroller features the C166 core architecture optimized for real-time applications. Its blend of CISC, DSP, and RISC instruction sets offers enhanced flexibility, making it suitable for complex embedded control tasks.
Key Features
Let's delve into the standout features that make the XC167CI16F40FBBKXQMA1 a standout in the world of electronics:
· It uses the C166SV2 core running at a maximum CPU frequency of 40 MHz.
· It has 128KB of Flash memory for program storage.
· The MCU operates on a dual-voltage supply ranging from 2.5V to 5V.
· It features 8KB of RAM and supports expanded memory up to 16MB.
· It includes 103 general-purpose input/output (GPIO) pins.
· The MCU contains five timers and one ADC module with 16 channels and 10-bit resolution.
· Communication interfaces include 2 CAN controllers, 2 SPI, 1 I2C, and 2 USART.
· It offers a watchdog timer and a real-time clock for system reliability.
· The device supports LCD segment driving with up to 256 segments.
· It has a maximum power dissipation of 800 mW, ideal for power-sensitive designs.
· The MCU is rated for automotive-grade temperature range (-40°C to 125°C).
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the XC167CI16F40FBBKXQMA1:
Type | Parameter |
Family Name | XC166 |
Instruction Set Architecture | CISC|DSP|RISC |
Device Core | C166SV2 |
Core Architecture | C166 |
Maximum CPU Frequency (MHz) | 40 |
Maximum Clock Rate (MHz) | 40 |
Data Bus Width (bit) | 16 |
Program Memory Type | Flash |
Program Memory Size | 128KB |
RAM Size | 8KB |
Maximum Expanded Memory Size | 16MB |
Programmability | Yes |
Interface Type | CAN/I2C/SPI/USART |
Number of I/Os | 103 |
No. of Timers | 5 |
Number of ADCs | 1 |
ADC Channels | 16 |
ADC Resolution (bit) | 10 |
LCD Segments | 256 |
USART | 2 |
UART | 0 |
USB | 0 |
SPI | 2 |
I2C | 1 |
I2S | 0 |
CAN | 2 |
Ethernet | 0 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2.35|4.4 |
Typical Operating Supply Voltage (V) | 2.5|5 |
Maximum Operating Supply Voltage (V) | 2.7|5.5 |
Maximum Power Dissipation (mW) | 800 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Automotive |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 mm |
Package Width | 20 mm |
Package Length | 20 mm |
PCB changed | 144 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 144 |
Lead Shape | Gull-wing |
* XC167CI16F40FBBKXQMA1's Datasheet
Applications
This MCU is widely used in various embedded control applications, including:
· Automotive engine and transmission control systems.
· Industrial automation and motor control.
· Safety-critical systems requiring reliable real-time operation.
· Communication interfaces in vehicles leveraging dual CAN controllers.
· Embedded systems demanding robust temperature tolerance and power efficiency.
XC167CI16F40FBBKXQMA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon XC167CI16F40FBBKXQMA1 microcontroller offers a robust solution for engineers seeking a 16-bit MCU with diverse instruction sets and rich peripheral integration. Its automotive-grade reliability, extensive I/O options, and flexible communication interfaces make it an excellent choice for embedded systems requiring real-time control and data processing. Whether you're designing automotive ECUs or industrial controllers, the XC167CI16F40FBBKXQMA1 ensures high performance and durability.
