What Are Analog Switches?

When you swipe on your phone screen, your smartwatch precisely tracks your heart rate, or a factory robot arm smoothly carries out commands, countless analog signals — tiny voltages and changing currents — are zipping through the device’s internals at lightning speed. Whether these signals reach their destination on time and without loss directly affects how well your device performs and responds. The unsung hero managing all this traffic? The analog switch.

In this article, we'll dive into what analog switches are, how they work, their main features and advantages, typical uses, and tips on choosing the right one. Let's get to know this key component inside so many electronic devices.

Catalog

I. What Are Analog Switches?

II. How Do They Work?

III. Key Features & Advantages

IV. Common Applications

V. Tips for Choosing an Analog Switch

VI. Conclusion

I. What Are Analog Switches?

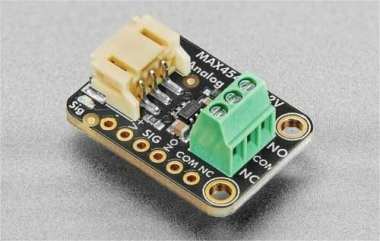

An analog switch is a semiconductor-based electronic switch — often built from MOSFETs or JFETs — that controls whether an analog signal path is connected or disconnected. Essentially, it uses a digital control signal (like a high or low voltage) to open or close the path for the analog signal. Compared to mechanical relays, analog switches offer greater reliability and a longer lifespan since they have no moving parts.

II. How Do They Work?

Most analog switches use CMOS technology and combine both N-channel and P-channel MOSFETs. When the control input is low, the N-channel MOSFET turns on while the P-channel MOSFET turns off, allowing the signal to pass through the normally open (NO) terminal. When the control input is high, the roles reverse, and the signal goes through the normally closed (NC) terminal instead. This setup lets analog switches pass signals in both directions, making them great for applications where bidirectional signal switching is needed.

III. Key Features & Advantages

· Low On-Resistance: When turned on, the switch typically has a resistance below 1 ohm, helping to minimize signal loss.

· High Input Impedance: When off, input impedance often reaches hundreds of megaohms, effectively isolating the signal path.

· Bidirectional Signal Flow: Thanks to complementary MOSFETs, analog switches can handle signals flowing both ways.

· High Integration: Modern analog switches often pack multiple channels into one chip, saving space and cutting costs.

· Low Power Consumption: Static power draw is extremely low—usually in the nanoamp range—ideal for battery-powered devices.

· Fast Switching Speed: Capable of switching at MHz frequencies, suitable for high-speed signal processing.

· High Reliability: No mechanical contacts means better resistance to vibration and shock, perfect for tough environments.

IV. Common Applications

Analog switches show up everywhere signals need to be routed or switched:

· Audio and video equipment for signal selection and mixing

· Data acquisition systems choosing among multiple sensor inputs

· Communication gear handling RF signal routing and antenna switching

· Industrial automation controlling process signals

· Medical devices capturing precise biosignals

· Power management circuits for battery and power path control

V. Tips for Choosing an Analog Switch

When selecting an analog switch, keep these factors in mind:

· On-Resistance (Ron): Lower is better to reduce signal degradation.

· Switching Speed: Pick a speed that matches your application’s demands.

· Operating Voltage Range: Make sure the switch can handle your system voltages.

· Package Type: Choose a package that fits your PCB layout and assembly needs.

· Leakage Current: Lower leakage means better signal integrity and system stability.

VI. Conclusion

Think of analog switches as the precise traffic lights inside your electronic circuits, controlling when and where signals go. They work quietly behind the scenes but are essential for smooth operation—from smoothly switching sensor data in your smartphone to accurately routing measurement signals in industrial gear. Thanks to ongoing semiconductor advances, these switches keep getting better — with lower loss, faster speeds, and improved durability for ever more demanding environments.
