ADXRS453BRGZ: Features, Specs & More
When it comes to precise angular rate sensing, the Analog Devices, Inc. (ADI) ADXRS453BRGZ stands out as a reliable and high-performance single-axis gyroscope. Whether you are designing navigation systems, robotics, or industrial automation, understanding this sensor's capabilities can help you optimize your projects. In this comprehensive article, we'll delve into the intricacies of the ADXRS453BRGZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADXRS453BRGZ's Overview

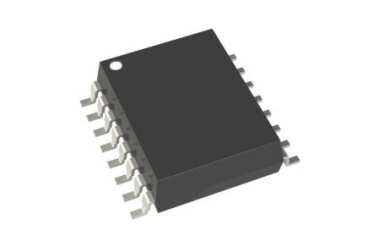

The ADXRS453BRGZ is a single-axis angular rate sensor manufactured by Analog Devices, Inc., designed for accurate rotational velocity measurement. This MEMS-based gyroscope supports a ±400°/s measurement range and is packaged in a 16-pin SOIC tube, making it compatible with surface-mount PCB designs. It is engineered to provide low noise, high linearity, and resilience under harsh conditions.
Key Features
Let's delve into the standout features that make the ADXRS453BRGZ a standout in the world of electronics:
· The gyroscope measures angular velocity with a typical noise density of 0.015 °/s/√Hz, ensuring highly precise motion sensing.
· It operates within an angular velocity range of ±400 degrees per second, catering to a wide spectrum of motion speeds.
· The device can endure shocks up to 2000 g, highlighting its durability in harsh environments.
· It requires a minimum operating supply voltage of 3.15 volts and typically operates at 3.3 to 5 volts, allowing flexibility in power design.
· The maximum operating supply current is 8 mA, making it energy-efficient for embedded applications.
· It is rated to work reliably in temperatures ranging from -40°C to 105°C, suitable for commercial temperature grades.
· The gyroscope features linearity in its output, which ensures accurate and consistent measurements.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADXRS453BRGZ:
Type | Parameter |
Axis Type | Single |
Typical Angular Rate Noise Density (°/s/rtHz) | 0.015 |
Typical Angular Velocity (°/s) | ±400(Max) |
Shock (g) | 2000 |
Minimum Operating Supply Voltage (V) | 3.15 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Operating Supply Voltage (V) | 5.25 |
Maximum Operating Supply Current (mA) | 8 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Supplier Temperature Grade | Commercial |
Linearity | Yes |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 3.4 |
Package Width | 7.8 |
Package Length | 10.3 |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The ADXRS453BRGZ gyroscope is ideal for various industrial and commercial applications that require precise angular rate measurement, including:
· Robotics navigation and motion control.
· Industrial automation and machinery monitoring.
· Inertial measurement units (IMUs) in aerospace and defense.
· Platform stabilization in cameras and drones.
· Automotive stability control systems.
· Consumer electronics requiring motion sensing.
ADXRS453BRGZ's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI ADXRS453BRGZ is a robust, accurate, and efficient single-axis gyroscope that delivers excellent performance for a wide range of electronics applications. Its wide operating voltage and temperature range, combined with low noise and high shock resistance, make it an ideal sensor for challenging environments. If you are seeking a reliable angular rate sensor for your next project, the ADXRS453BRGZ deserves serious consideration.
