What Are Slide Switches?
From power control in kids' toy cars to precise adjustments in automotive sunroofs, slide switches act as the "silent guardians" of electromechanical components, playing a crucial role in turning circuits on and off in electronic devices. These switches work by sliding a conductive piece linearly to connect or disconnect a circuit, offering both intuitive physical operation and stable state retention.
As electronics get thinner and more densely packed, ultra-compact slide switches—like the NKK SS series, measuring just 10.2mm long—have become essential components in consumer electronics, industrial gear, and automotive electronics due to their ability to fit into tight PCB layouts.
This article dives into what slide switches are, how they work, their features and advantages, and where you'll commonly find them used.
Catalog
I. What Are Slide Switches?

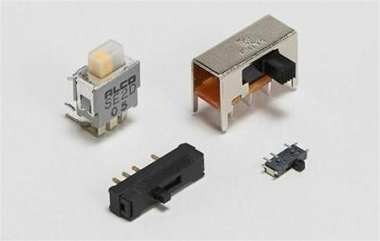

A slide switch is a mechanical switch that controls the on/off state of a circuit by sliding a handle. Unlike push-button or toggle switches, slide switches change which contacts touch by sliding a slider along a track to open or close circuits.
The main parts include:
· Contact system: Movable contacts (usually connected to a common terminal) and fixed output terminals, often made of phosphor bronze plated with silver or gold to ensure low contact resistance (as low as 20mΩ).
· Slider mechanism: Made from POM (polyoxymethylene) engineering plastic, offering high wear resistance and a smooth feel.
· Housing and terminals: Nickel-plated iron casing to prevent oxidation, with terminals designed for either through-hole (THT) or surface-mount (SMT) assembly.
II. Work Principles
When you slide the handle, an internal metal blade moves between different contacts. Sliding it to one position connects the blade with a certain contact, closing the circuit; sliding to another position breaks that connection and connects a different contact or opens the circuit entirely. This mechanical contact method ensures stable electrical connections and quick response.
III. Types of Slide Switches
Common slide switch types include:
· Single Pole Double Throw (SPDT): Three terminals, switches between two circuits.
· Single Pole Triple Throw (SP3T): Four terminals, switches between three circuits.
· Double Pole Double Throw (DPDT): Six terminals, switches between two pairs of circuits.
Typically, the sliding metal blade makes or breaks contact with metal terminals to open or close the circuit.
IV. Features and Advantages
Slide switches come with several key benefits:
· Simple structure: Easy to design, manufacture, and maintain.
· Intuitive operation: Simply slide the handle to switch states.
· Cost-effective: Low manufacturing costs, ideal for mass production.
· High reliability: Stable contact and long service life.
· Versatile: Available in various types and specs to suit different needs.
V. Applications
Slide switches are used widely across different fields, such as:
· Portable devices: Power switching in radios (e.g., KH-SS12F01) and mode selection in game consoles, favored for their lightweight (≤2g) and low current (0.3A) features.
· Smart homes: Thermostat setting adjustments (JS207 series) that combine sliding and momentary button functions.
· Industrial control: Signal routing in PLC modules, using DPDT switches to isolate high and low voltage circuits.
· Automotive electronics: Sunroof control (SOUNDWELL MS14) with 5-step precision adjustment; beryllium copper silver-plated contacts ensure stable conduction even under vibration.
VI. Conclusion
As a fundamental component in electronics, slide switches are widely used thanks to their ease of use, stable construction, and variety of options. Their evolution keeps focusing on miniaturization, high reliability, and environmental adaptability. With ongoing technological advances, slide switches will continue to expand their performance and application scope, supporting the growth of the electronics industry.
