XC164CS32F40FBBAFXUMA1: Features, Specs & More
When it comes to industrial-grade microcontrollers, Infineon Technologies’ XC164CS32F40FBBAFXUMA1 stands out as a versatile and high-performance solution. This 16-bit microcontroller combines CISC, DSP, and RISC architectures to provide powerful processing for automotive and embedded systems. In this comprehensive article, we'll delve into the intricacies of the XC164CS32F40FBBAFXUMA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
XC164CS32F40FBBAKXUMA1's Overview
XC164CS32F40FBBAKXUMA1's Manufacturer
XC164CS32F40FBBAFXUMA1's Overview
The XC164CS32F40FBBAFXUMA1 is a 16-bit microcontroller built on the C166SV2 core. It supports a CISC/DSP/RISC instruction set architecture, enabling high-speed data processing and multitasking capabilities. With a maximum CPU frequency of 40 MHz and 256KB of Flash memory, this MCU balances performance and storage for embedded applications.
Key Features
Let's delve into the standout features that make the XC164CS32F40FBBAFXUMA1 a standout in the world of electronics:
· It operates on both 2.5V and 5V supply voltages.
· It integrates 12KB of RAM for efficient data handling.
· It provides up to 16MB of expanded memory support.
· The MCU includes 79 general-purpose I/O pins.
· It supports multiple interfaces such as CAN, SPI, and USART.
· It features 5 timers for precise control operations.
· The device includes a PWM module for signal modulation.
· It has a 14-channel, 10-bit ADC for analog signal processing.
· Real-time clock functionality is built into the MCU.
· A watchdog timer ensures reliable system operation.

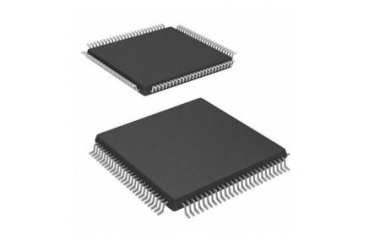

· The MCU is packaged in a 100-pin TQFP with surface-mount technology.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the XC164CS32F40FBBAFXUMA1:
Type | Parameter |
Family Name | XC166 |
Instruction Set Architecture | CISC|DSP|RISC |
Device Core | C166SV2 |
Core Architecture | C166 |
Maximum CPU Frequency (MHz) | 40 |
Maximum Clock Rate (MHz) | 40 |
Data Bus Width (bit) | 16 |
Program Memory Type | Flash |
Program Memory Size | 256KB |
RAM Size | 12KB |
Maximum Expanded Memory Size | 16MB |
Programmability | Yes |
Interface Type | CAN/SPI/USART |
Number of I/Os | 79 |
No. of Timers | 5 |
PWM | 1 |
Number of ADCs | 1 |
ADC Channels | 14 |
ADC Resolution (bit) | 10 |
USART | 2 |
UART | 0 |
USB | 0 |
SPI | 2 |
I2C | 0 |
I2S | 0 |
CAN | 2 |
Ethernet | 0 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2.35|4.4 |
Typical Operating Supply Voltage (V) | 2.5|5 |
Maximum Operating Supply Voltage (V) | 2.7|5.5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
* XC164CS32F40FBBAFXUMA1's Datasheet
Applications
The XC164CS32F40FBBAFXUMA1 is ideal for:
· Automotive control systems requiring high reliability.
· Industrial automation and motor control solutions.
· Embedded systems with CAN-based communication.
· Real-time data acquisition and signal processing projects.
· Applications demanding robust MCU performance under harsh conditions.
XC164CS32F40FBBAFXUMA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The XC164CS32F40FBBAFXUMA1 microcontroller offers a unique combination of performance, flexibility, and industrial reliability. With its 16-bit C166 core, extensive interfaces, and advanced peripherals, it is ideal for automotive and embedded system engineers seeking a trusted MCU solution. For developers aiming to optimize their embedded projects, this MCU provides both robust hardware and versatile programmability.
