What is a Toggle Switch?
In today’s world, where electronic devices are everywhere, toggle switches play a quiet but crucial role. They handle signal routing, power management, and system protection, ensuring that devices from smartphones to industrial machinery, cars to aerospace systems, operate efficiently and reliably. By precisely controlling the flow and direction of current, toggle switches keep electronic systems running smoothly. This article explores the definition, working principles, key features, advantages, and applications of toggle switches.
Catalog
I. What is a Toggle Switch?

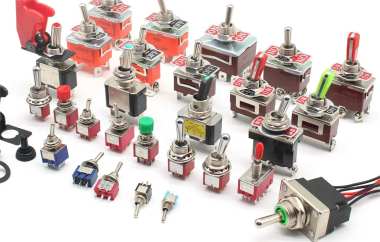

A toggle switch is an electronic component used to change the connection state of a circuit. By switching between multiple circuit paths—either physically or electronically—it controls the flow of signals or power. Based on their construction and operating principles, toggle switches are generally divided into two categories: mechanical and electronic.
Mechanical toggle switches rely on the physical contact of terminals to open or close a circuit. For example, a SPDT (Single Pole Double Throw) switch has one input terminal (COM) and two output terminals (NO for normally open, NC for normally closed). The circuit path changes mechanically when the lever is toggled.
Electronic toggle switches, on the other hand, use semiconductor properties to switch without physical contact. Hall-effect switch chips detect magnetic fields to trigger circuit changes, while MOSFET switches control current flow via gate voltage.
Specialized types of switches include:
· Spring-loaded toggle (e.g., JL2 type): Uses the elasticity of metal springs to automatically reset quickly, with millisecond-level response times.
· Dual-series switch diode (e.g., BAW56LT1G): Integrates two diodes for high-speed signal routing and ESD protection, with switching speeds as fast as 4 nanoseconds.
· Solid-state power switch (e.g., SL3405S): Combines MOSFETs and protective circuitry, supporting up to 42V and 600mA loads.
II. Working Principle
The basic principle of a toggle switch is simple: when the user moves the lever, internal contacts shift position, changing the circuit connection and controlling the flow of current. For example, in an SPDT switch, the lever's two positions correspond to two circuit states, allowing users to toggle between them as needed.
III. Features and Advantages
Modern toggle switches have evolved to address traditional component limitations:
Feature | Mechanical (SPDT) | Electronic (Hall/MOSFET) |
Electrical Performance | Contact resistance <50mΩ, low power loss | Switching speed 4ns (diode) |
Environmental Resistance | IP67 waterproof (industrial-grade) | Operating temperature -40℃ to 150℃ |
Reliability | 100,000 mechanical cycles | No contact wear, virtually unlimited lifespan |
Safety | Physical isolation | Integrated ESD ±8kV, short-circuit protection |
High integration designs greatly improve system efficiency. For instance, the BAW56LT1G dual-series diode in a SOT-23-3 package saves 50% PCB space compared to discrete solutions while providing 8kV ESD protection. Automotive-grade certifications serve as the benchmark for reliability. Hall-effect switches like SC25891 meet AEC-Q100 and SEooC ASIL-A standards, ensuring zero failures in critical applications such as seatbelt buckles.
Intelligent protection mechanisms are now standard in high-end electronic switches. The SL3405S power switch integrates triple protection: current limiting, thermal shutdown (triggered at 150℃), and automatic restart, preventing permanent damage from abnormal conditions like motor stalls. The SL3170 buck converter employs dual-stage thermal protection—reducing power at 120℃ and shutting down at 150℃—balancing system safety and availability.
IV. Applications
Due to their reliability and ease of use, toggle switches are widely applied in:
· Industrial equipment: Motor start/stop, mode selection, and machine control.
· Automotive electronics: Controlling lights, seat heaters, audio systems, and other functions.
· Consumer electronics: TV, power equipment, audio devices, and other circuit controls.
· Medical devices: Ensuring safe and reliable operation of critical equipment.
· Communication devices: Power switching and mode selection.
V. Conclusion
Toggle switch technology is advancing toward higher integration and intelligence. Dual-channel power switches like the SL3405S can replace multiple discrete components with a single chip, significantly boosting system reliability. Wide-bandgap semiconductors, such as GaN, allow switching frequencies in the MHz range, greatly reducing power supply size. Bio-inspired designs are also emerging, with adjustable bistable feedback circuits paving the way for synapse-like behavior in artificial neural networks.
As a core control unit in electronic systems, the evolution of toggle switches directly shapes device performance. From millisecond-response spring-loaded switches to nanosecond diode arrays, from automotive chips that operate at -40℃ to MOSFET modules for high-temperature industrial settings, innovation is relentless. With increasing demands for intelligence and high reliability, toggle switches will continue to push physical limits, building a safer and more efficient electronic infrastructure for modern life.
