5962-8872101PA: Features, Specs & More
Analog Devices, Inc. (ADI) has a strong reputation for delivering reliable and high-performance electronic components. Among its offerings, the 5962-8872101PA stands out as a standard dual general-purpose amplifier, designed for a wide range of applications. In this comprehensive article, we'll delve into the intricacies of the 5962-8872101PA, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
5962-8872101PA's Overview

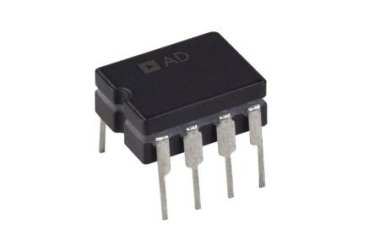

The ADI 5962-8872101PA is a dual general-purpose amplifier housed in an 8-CERDIP package. It offers stable performance across a wide temperature range, making it suitable for both industrial and military-grade applications. This amplifier is known for its low input offset voltage, minimal bias current, and reliable gain bandwidth performance.
Key Features
Let's delve into the standout features that make the 5962-8872101PA a standout in the world of electronics:
· The amplifier contains two independent circuits for versatile signal processing.
· It delivers a slew rate of 2.4 V/µs for fast response in analog signal applications.
· The gain bandwidth product is 5 MHz, ensuring stable amplification for medium-frequency signals.
· It has a low input bias current of 5 nA, minimizing error in sensitive circuits.
· The input offset voltage is only 10 µV, providing high-precision signal accuracy.
· The supply current is 4 mA, making it energy-efficient for continuous operation.
· It operates with a supply voltage range of 9 V to 36 V, compatible with most electronics systems.
· The device is rated for an operating temperature from -55°C to 125°C, suitable for harsh environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 5962-8872101PA:
Type | Parameter |
Amplifier Type | Standard (General Purpose) |
Number of Circuits | 2 |
Output Type | - |
Slew Rate | 2.4V/µs |
Gain Bandwidth Product | 5 MHz |
Current - Input Bias | 5 nA |
Voltage - Input Offset | 10 µV |
Current - Supply | 4mA |
Voltage - Supply Span (Min) | 9 V |
Voltage - Supply Span (Max) | 36 V |
Operating Temperature | -55°C ~ 125°C |
Mounting Type | Through Hole |
Package / Case | 8-CDIP (0.300", 7.62mm) |
Supplier Device Package | 8-CERDIP |
Applications
The ADI 5962-8872101PA is versatile and ideal for multiple electronics applications. Engineers use it in signal conditioning circuits, analog filters, and precision instrumentation. It is also suitable for data acquisition systems, control systems, and military or aerospace electronics, where reliability across temperature extremes is critical.
5962-8872101PA's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI 5962-8872101PA is a versatile, high-performance general-purpose amplifier that meets the demands of both professional and industrial applications. With its precision, low power consumption, and wide operational range, it remains a preferred choice for engineers designing reliable analog circuits. For those seeking a robust and dependable dual amplifier, the 5962-8872101PA delivers performance and stability in one package.
