Are Network Filters EMI or EMC Filters?
Engineers and procurement professionals have long focused on the classification and functions of filters in electronic components, especially the relationships between EMI filters, EMC filters, and network filters.
In electronic systems, electromagnetic compatibility (EMC) is a key requirement to ensure devices operate properly, and filters play a crucial role in achieving this goal. Although EMI filters, EMC filters, and network filters have similar names, their functions and application scenarios differ. Together, they form the foundation of EMC design in electronic systems, ensuring stable operation in complex electromagnetic environments. This article will explore the definitions, functions, applications, and classifications of these three types of filters.
Catalog
III. What is a Network Filter?
I. What is an EMI Filter?
An EMI filter, short for Electromagnetic Interference Filter, is a device designed to suppress electromagnetic interference in electronic equipment. Its core function is to filter noise in input or output cables, keeping electromagnetic interference within a controlled range and ensuring the device meets EMC standards.
The working principle of EMI filters relies on the frequency characteristics of inductors and capacitors. Inductors present high impedance to high-frequency currents, blocking high-frequency interference from passing through, while capacitors offer low impedance to high-frequency signals, shunting them to ground. By combining these components, EMI filters can effectively attenuate electromagnetic interference within a specific frequency range.

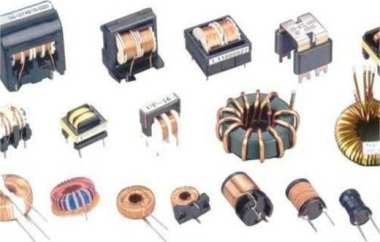

EMI filters are mainly divided into two types: common-mode filters and differential-mode filters.
· Common-mode filters suppress interference signals that flow in the same direction on both power lines.
· Differential-mode filters suppress interference signals that flow between the two power lines.
EMI filters are widely used in power supplies, communication equipment, industrial control systems, and medical electronics to reduce internally generated or externally transmitted electromagnetic interference, ensuring circuits operate normally.
II. What is an EMC Filter?
An EMC filter, or Electromagnetic Compatibility Filter, is a component used to ensure electronic devices coexist harmoniously in an electromagnetic environment. It not only suppresses interference generated by the device itself but also protects the device from being affected by interference from surrounding equipment. EMC filters are made of electronic components such as capacitors, inductors, and resistors. Their combination effectively filters high-frequency noise and interference, protecting circuits from external electromagnetic disturbances.
The working principle is based on impedance matching and filtering in circuits, with carefully designed component parameters reducing noise and interference.
Depending on the application, EMC filters can be divided into three main categories:
· Power filters: Used in power lines to suppress conducted interference and provide stable, clean power to the device.
· Signal filters: Used in signal lines to ensure signal integrity and accuracy during transmission.
· Antenna filters: Installed between the antenna and the device to suppress electromagnetic interference from transmission or reception, improving antenna performance.
Structurally, EMC filters can take various forms, such as LC filters, π-type filters, and T-type filters.
They are widely applied in consumer electronics, industrial automation, communication infrastructure, and medical devices, serving as key components to meet EMC regulations and gain market access.
III. What is a Network Filter?
A network filter, also called a data transformer or network isolation transformer, is a filter specifically designed for Ethernet devices. Its main functions at the network interface are twofold: data transmission and isolation between network devices.
For data transmission, network filters couple differential signals from the PHY (physical layer chip) through differential-mode coupled coils, enhancing the signal and transferring it to the other end of the network cable at a different voltage level. For isolation, they prevent voltage differences from damaging devices through the cable and provide a level of surge protection.
Network filters are widely used in Ethernet devices such as switches, routers, network cards, and hubs, providing signal coupling, high-voltage isolation, impedance matching, and EMI suppression. Internally, they usually contain components like common-mode chokes (CMC), transformers, and autotransformers. Common-mode chokes suppress common-mode noise by presenting high impedance while having minimal effect on differential-mode (useful) signals.
Network filters can be classified by structure into discrete network transformers and RJ45 connectors with integrated magnetic transformer modules. By transmission rate, they can be categorized as 10Base-T, 10/100Base-T, 1000Base-T, and 10GBase-T.
IV. Conclusion
From this, it is clear that network filters are essentially a subset of both EMI and EMC filters, classified differently based on perspective. EMI filters focus on suppressing electromagnetic interference, EMC filters ensure the overall electromagnetic compatibility of devices, and network filters are specialized for Ethernet equipment. These three types of filters each serve distinct roles in the electronics industry, collectively ensuring the stable operation of electronic devices in complex electromagnetic environments.
