2095-80-BLF: Features, Specs & More
If you are designing electronics that require robust surge protection, the Bourns 2095-80-BLF Gas Discharge Tube is a standout component. This axial, through-hole device is engineered to handle high-voltage transients while maintaining low capacitance. Its design ensures protection for sensitive electronic circuits in industrial, telecom, and consumer electronics applications. In this comprehensive article, we'll delve into the intricacies of the 2095-80-BLF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
2095-80-BLF's Overview

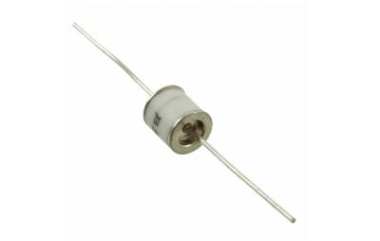

The 2095-80-BLF is a gas discharge tube designed to protect circuits from voltage surges. It operates at a typical DC sparkover voltage of 800V. The device can handle impulse discharge currents up to 5kA. It is constructed in an axial, through-hole form factor. The tube is optimized for fast response to transient voltages while maintaining minimal interference with normal circuit operation.
Key Features
Let's delve into the standout features that make the 2095-80-BLF a standout in the world of electronics:
· The device provides surge protection with a maximum impulse sparkover voltage of 1200V.
· It supports high-current transients with a typical impulse discharge current of 5kA.
· The tube exhibits extremely low capacitance, only 1.5pF at 1MHz.
· Its DC sparkover voltage tolerance is ±20%, ensuring reliable protection.
· The operating temperature range spans from -30°C to 90°C.
· The tube has two electrodes and two terminals for straightforward axial mounting.
· It is packaged in bulk for industrial and production efficiency.
· The lead diameter is 0.8mm, and the product dimensions are 8mm in length and 8mm in diameter.
· It is designed without failsafe protection, emphasizing external circuit design responsibility.
· The typical impulse life is rated at 100 cycles at 10/1000µs, providing durable performance.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 2095-80-BLF:
Type | Parameter |
DC Sparkover Voltage Tolerance | ±20% |
Maximum Impulse Sparkover Voltage @ 100V/s (V) | 1100 |
Maximum Impulse Sparkover Voltage @ 1KV/s (V) | 1200 |
Typical DC Sparkover Voltage @ 100V/s (V) | 800 |
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA) | 5 |
Minimum Insulation Resistance @ 100V (Gohm) | 1 |
Maximum Capacitance @ 1MHz (pF) | 1.5 |
Typical Impulse Life @ 10/1000us (Times) | 100 |
Number of Electrodes | 2 |
Termination Style | Axial |
Number of Terminals | 2 |
Minimum Operating Temperature (°C) | -30 |
Packaging | Bulk |
Maximum Operating Temperature (°C) | 90 |
Lead Diameter (mm) | 0.8 |
Product Length (mm) | 8 |
Product Diameter (mm) | 8 |
Failsafe Protection | No |
Mounting | Through Hole |
Applications
The Bourns 2095-80-BLF is ideal for protecting sensitive electronics against high-voltage transients. It is commonly used in telecommunications systems. It is suitable for industrial power supply circuits. It is applied in consumer electronics that require reliable surge protection. It is also effective in automotive electronics exposed to voltage spikes. The tube is compatible with printed circuit boards requiring axial, through-hole mounting.
2095-80-BLF's Manufacturer
Established in Altadena, California in 1947 by Marlan and Rosemary Bourns, Bourns, Inc. is an American electronics company that develops, manufactures and supplies electronic components for a variety of industries including automotive, industrial, instrumentation, medical electronics, consumer equipment and portable electronics.
Conclusion
The Bourns 2095-80-BLF Gas Discharge Tube offers reliable, high-performance surge protection for a wide range of electronics. With its axial design, high impulse current capability, and low capacitance, it ensures safety without compromising circuit performance. Engineers seeking durable, high-voltage protection will find this component an essential addition to their designs. Choosing Bourns means trusting a proven manufacturer with decades of expertise in circuit protection solutions.
