What Are Hot Swap Controllers?
Behind every uninterrupted server, network device, and industrial system is the quiet work of hot swap controllers, ensuring each board can be safely inserted or removed. In modern electronics, Hot Swap Controllers have become an essential component of high-availability infrastructure. These specialized ICs let you safely plug in and pull out circuit boards in fully powered systems without causing power interruptions or hardware damage.
Catalog
I. What Are Hot Swap Controllers?
I. What Are Hot Swap Controllers?

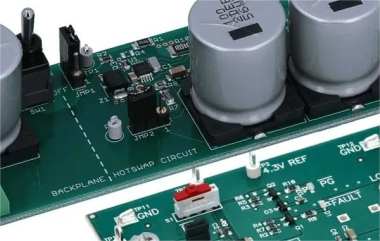

A hot swap controller is a specialized integrated circuit designed to manage and control the insertion and removal of PCBs on live backplanes or connectors. These devices safely handle connection and disconnection by controlling external N-channel MOSFET switches, preventing sparks, connector damage, or system failures.
High-availability systems—like servers, network routers, and solid-state drives—often have multiple power supply feeds on their boards. Hot swap controllers are crucial in these setups, ensuring that maintenance, upgrades, or expansions can occur without interrupting ongoing operations.
II. Work Principles
Hot swap controllers operate through controlled power management and real-time fault detection. When a board is inserted into a live backplane, its bypass capacitors draw a large charging current from the backplane power rails. This inrush current can cause voltage dips, reset other boards in the system, or even damage edge connectors.
Hot swap controllers solve this by managing an external N-channel MOSFET. By ramping the MOSFET’s gate voltage at a controlled rate, the controller limits the transient inrush current (I = C·dv/dt) drawn from the main backplane. This keeps the current within safe levels and prevents disruption to the system.
At the same time, the controller continuously monitors load current via a sense resistor. If overcurrent or short-circuit conditions are detected, the controller responds immediately—typically within 100 nanoseconds—to limit peak fault currents.
III. Key Functions
· Soft-Start Power: Smoothly ramps up the MOSFET gate voltage to prevent current surges or voltage drops, keeping the system stable.
· Overvoltage/Undervoltage Protection: Continuously monitors input voltage to avoid system faults from voltage anomalies.
· Current Limiting & SOA Control: Limits startup current and keeps the MOSFET within its safe operating area to prevent damage.
· Fault Isolation & Alerts: Automatically disconnects faulty modules during short-circuit or overcurrent events and can report via PMBus or other interfaces for easy maintenance.
IV. Applications
· Servers and Data Centers: Enable live replacement of power modules, storage, or expansion boards, minimizing downtime and boosting operational efficiency.
· Telecom Equipment: Allow modules in base stations, switches, and other network devices to be replaced or maintained while running, ensuring network stability.
· Industrial Automation Systems: Let control modules be swapped during production without halting operations, maintaining workflow continuity and equipment reliability.
· High-Performance Computing and AI Accelerators: Support hot swapping of GPUs, FPGAs, and other high-power modules, improving system scalability and redundancy.
V. Market Trends
According to market research, the global hot swap controller market is expected to reach $3.7 billion by 2024 and grow to nearly $4.9 billion by 2033, with a CAGR of around 3%. With the rapid growth of AI, edge computing, 5G, and data centers, the demand for high-power, high-reliability hot swap controllers is increasing. Products are also evolving toward higher integration, smarter control, and support for higher voltage inputs, such as TI’s TPS23525 and Infineon’s XDP710.
VI. Conclusion
Hot swap controllers are a critical component of modern high-availability electronic systems, safeguarding power distribution and system reliability. From basic inrush current limiting to advanced digital monitoring and reporting, these controllers continue to evolve to meet increasingly complex application demands. As electronic systems demand more power and reliability, hot swap controller technology will continue advancing—integrating more features, improving precision, and supporting a wider range of operating conditions.
