EEE-1EA100WR: Features, Specs & More
In modern electronics design, reliable capacitors play a crucial role in circuit stability and performance. The PANASONIC EEE-1EA100WR is a high-quality surface-mount electrolytic capacitor engineered for automotive and industrial applications. Its compact size and robust specifications make it a preferred choice for engineers seeking durable components that meet stringent standards. In this comprehensive article, we'll delve into the intricacies of the EEE-1EA100WR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
EEE-1EA100WR's Overview

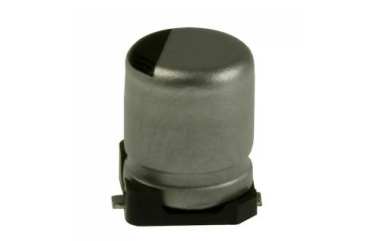

The EEE-1EA100WR is a compact electrolytic capacitor designed by Panasonic. It delivers a capacitance of 10uF and operates at a voltage rating of 25VDC. This capacitor is surface-mountable, making it ideal for automated assembly processes in high-density circuit boards. It adheres to AEC-Q200 automotive standards, ensuring high reliability in demanding environments.
Key Features
Let's delve into the standout features that make the EEE-1EA100WR a standout in the world of electronics:
· The capacitor has a capacitance value of 10uF, providing stable energy storage for circuits.
· It supports a voltage of 25VDC, suitable for low- to medium-voltage applications.
· It comes with a tolerance of 20%, allowing for predictable performance under varying conditions.
· The IR current is 0.022A, ensuring minimal leakage during operation.
· Its IL is 3uA at 2 minutes, demonstrating excellent insulation properties.
· The component has a lifetime of 1000 hours at 85°C, guaranteeing reliability over long-term usage.
· It is a polarized electrolytic capacitor, making proper orientation critical during installation.
· The cylindrical construction provides mechanical stability and thermal efficiency.
· Designed for surface-mounting, it supports automated PCB assembly lines.
· The capacitor is available in tape and reel packaging, facilitating bulk production needs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the EEE-1EA100WR:
Type | Parameter |
Type | Electrolytic |
Capacitance Value | 10uF |
Tolerance | 20% |
Voltage | 25VDC |
IR (mA) | 0.022 |
IL (uA) | 3@2Min |
Lifetime (H) | 1000 |
Polarity | Polar |
Construction | Cylindrical |
Mounting | Surface Mount |
Number of Terminals | 2 |
Size (mm) | 4 X 5.4 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Product Diameter (mm) | 4 |
Product Height (mm) | 5.4 |
Product Weight (g) | 0.13 |
Applications
The PANASONIC EEE-1EA100WR is ideal for:
· Automotive electronics where AEC-Q200 certification is essential.
· Power supply circuits requiring stable voltage smoothing.
· Industrial devices needing reliable surface-mount capacitors.
· Consumer electronics that demand compact, high-performance components.
· Embedded systems and IoT devices with space constraints.
EEE-1EA100WR's Manufacturer
Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.
Conclusion
The PANASONIC EEE-1EA100WR is a versatile, compact, and highly reliable electrolytic capacitor. Its robust specifications, adherence to automotive standards, and surface-mount design make it an excellent choice for engineers designing circuits in automotive, industrial, and consumer electronics applications. Choosing this capacitor ensures long-term performance, durability, and stability in your electronic designs.
