What Are Linear Regulator Controllers?
In today's modern electronics, linear regulator controllers act like silent guardians, making sure circuits get a steady, reliable voltage supply. Stable power is crucial for electronic devices to function properly, and linear regulators sit at the heart of this process, converting fluctuating input voltages into clean, stable output. According to market research, the global market for linear regulator controllers reached 9.488 billion RMB in 2024, with China accounting for 2.856 billion RMB. By 2030, the global market is projected to grow to 12.516 billion RMB, at a compound annual growth rate of 4.72%. This article dives into the definition, working principle, types, characteristics, advantages, applications, and more about linear regulator controllers.
Catalog
I. What Are Linear Regulator Controllers?
III. Types of Linear Regulators
IV. Key Features and Advantages

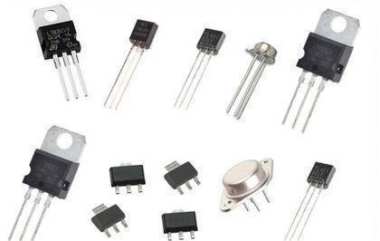

I. What Are Linear Regulator Controllers?
A linear regulator controller is a type of power management IC (PMIC) that provides stable output voltage, ensuring downstream circuits operate normally even when input voltage fluctuates or the load changes. These controllers usually work with external transistors (like N-MOSFETs) to adjust resistance and regulate voltage. Compared to switching regulators, linear regulators are simpler in design, produce less noise, and are ideal for applications where voltage stability is critical.
II. Work Principles
Linear regulators rely on feedback control to precisely maintain output voltage. The system typically includes a pass element, an error amplifier, a reference voltage source, and a feedback network. When the input voltage or load current changes, causing output voltage fluctuations, the error amplifier detects the deviation and adjusts the control signal. This changes the voltage drop across the pass element and brings the output voltage back to the desired value.
The reference voltage provides a stable benchmark, while the feedback network constantly monitors the output and feeds it back to the error amplifier. The amplifier compares this feedback with the reference, and any difference generates a control signal to fine-tune the pass element. This dynamic process happens almost instantly, keeping the output voltage steady.
III. Types of Linear Regulators
Linear regulators are generally divided into two main types: traditional linear regulators and low-dropout (LDO) regulators.
· Traditional Linear Regulators: Usually use NPN transistors as pass elements. They have a relatively high saturation voltage (1.5V–2.5V) due to base current requirements. While simple and reliable, they can waste more power and have lower efficiency.
· LDO Regulators: Use PNP, PMOS, or NMOS pass transistors, significantly reducing dropout voltage. LDOs are now the mainstream choice:
· PNP LDOs (e.g., LM1117): Dropout ~1.2V at 800mA, low cost but higher quiescent current (>100µA).
· PMOS LDOs (e.g., TC1185): Dropout ~30mV at 100mA, quiescent current <1µA, ideal for low-power devices.
· NMOS LDOs (e.g., ADP150): Dropout ~50mV at 500mA, fast response (<10µs), great for high-speed digital circuits.
IV. Key Features and Advantages
Linear regulator controllers offer several benefits that make them indispensable in electronics:
· High Stability and Accuracy: They provide highly stable output voltages with precision often ±1% to ±2% or better.
· Low Noise Output: Output noise can be as low as 10–100µVrms, making them suitable for sensitive analog or RF circuits.
· Fast Transient Response: Modern regulators can quickly respond to sudden changes in input or load, keeping the system stable.
V. Applications
Linear regulators are widely used across electronics, meeting power management needs in various industries:
· Consumer Electronics: Smartphones, tablets, and laptops.
· Industrial Automation: PLCs, sensors, and actuators.
· Automotive Electronics: Navigation systems, body control modules, and other onboard devices.
· Communication Equipment: Base stations, routers, and switches for stable signal processing.
VI. Conclusion
Linear regulator technology continues to evolve to meet the higher power management demands of emerging applications. Future LDO controllers are heading toward lower dropout voltages, higher efficiency, greater accuracy, and lower noise—perfect for 5G communications, AI, and IoT. Integration and smart features will also shape the next generation of linear regulators, combining multiple functions in a single chip to save board space and reduce system costs. As technology advances, linear regulators will keep moving toward lower dropout, higher precision, and more compact designs, maintaining their essential role in modern electronics.
