A1120LLHLT-T: Features, Specs & More

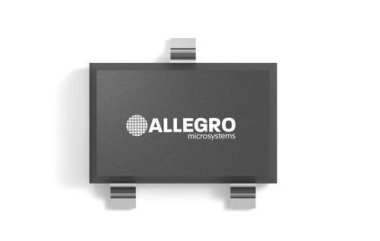

The Allegro MicroSystems A1120LLHLT-T is a high-performance unipolar Hall Effect sensor designed for automotive and industrial applications. It offers reliable magnetic sensing in a compact 3-pin SOT-23W package. Its versatility in operating voltages ranging from 3.3V to 18V makes it suitable for a wide array of projects. In this comprehensive article, we'll delve into the intricacies of the A1120LLHLT-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
A1120LLHLT-T's Overview
The A1120LLHLT-T is a unipolar Hall Effect sensor integrated circuit (IC) that detects magnetic fields. It converts magnetic flux density into an electrical output signal. The sensor is optimized for automotive use and provides a stable output over a wide temperature range. It is engineered for surface-mount PCB applications, making it convenient for compact electronics.
Key Features
Let's delve into the standout features that make the A1120LLHLT-T a standout in the world of electronics:
· The sensor operates on a voltage range from 3.3V to 18V.
· It has a maximum output current of 25mA.
· The sensor supports a maximum supply voltage of 24V.
· It offers a typical output fall time of just 0.1 microseconds.
· Its magnetic operating point ranges between 5 to 50 Gauss.
· It is available in a compact 3-pin SOT-23W surface mount package.
· The sensor is rated for temperatures from -40°C to 150°C.
· It is fully automotive AEC-Q100 compliant.
· The device comes in a tape and reel packaging, optimized for high-volume manufacturing.
· The lead shape is gull-wing, supporting easy PCB assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the A1120LLHLT-T:
Type | Parameter |
PPAP | Unknown |
Magnetic Type | Unipolar |
Module/IC Classification | IC |
Minimum Magnetic Sensor Release Point (Gs) | 5 |
Typical Magnetic Sensor Hysteresis (Gs) | 10 |
Maximum Magnetic Sensor Operating Point (Gs) | 50 |
Typical Output Fall Time (us) | 0.1 |
Maximum Output Current (mA) | 25 |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3|5|9|12|15|18 |
Maximum Operating Supply Voltage (V) | 24 |
Maximum Supply Current (uA) | 4000 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.95 |
Package Width | 1.91 |
Package Length | 2.98 |
PCB changed | 3 |
Standard Package Name | SOT |
Supplier Package | SOT-23W |
Pin Count | 3 |
Lead Shape | Gull-wing |
Applications
The A1120LLHLT-T is versatile and suitable for a range of applications:
· Automotive speed and position sensing.
· Proximity detection in industrial machinery.
· Brushless DC motor control.
· Current sensing in electronic circuits.
· Robotics and automation systems.
· Security and access control devices.
A1120LLHLT-T's Manufacturer
Allegro MicroSystems is a global semiconductor leader in sensor and power integrated circuits (ICs) and photonics. With more than 30 years of experience developing advanced semiconductor technology and application-specific algorithms, Allegro designs, develops, manufactures, and markets analog and mixed-signal semiconductors. The Company offers magnetic sensor integrated circuits (ICs), dual element switches, micropower switches, single output drivers, and LED drivers.
Conclusion
The Allegro MicroSystems A1120LLHLT-T is more than just a Hall Effect sensor; it is a high-performance, automotive-grade component that delivers accurate magnetic sensing across diverse applications. Whether you are designing automotive electronics, industrial machinery, or advanced robotics, this sensor provides reliability, precision, and efficiency. Its robust specifications, combined with Allegro's manufacturing excellence, make it a go-to choice for engineers worldwide.
