PRG18BB101MB1RB: Features, Specs & More
If you are working in electronics design or PCB manufacturing, understanding high-quality components is essential. The Murata PRG18BB101MB1RB is a 100 Ohm PTC thermistor designed for precise overcurrent protection. Compact, reliable, and surface-mountable, this thermistor ensures your circuits operate safely under varying conditions. In this comprehensive article, we'll delve into the intricacies of the PRG18BB101MB1RB, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PRG18BB101MB1RB's Manufacturer
PRG18BB101MB1RB's Overview

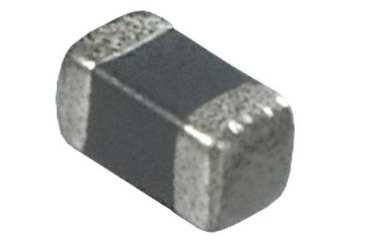

The PRG18BB101MB1RB is a PTC (Positive Temperature Coefficient) thermistor. It is a 2-terminal device that increases resistance as temperature rises. It helps prevent excessive current from damaging your electronics. Murata engineered it for surface-mount applications, making it perfect for modern compact PCBs.
Key Features
Let's delve into the standout features that make the PRG18BB101MB1RB a standout in the world of electronics:
· This thermistor has a resistance of 100 Ohms at 25°C.
· It operates efficiently between -10°C and 60°C.
· The device supports a maximum voltage of 24V.
· It features a resistance tolerance of ±20%.
· The component measures 1.6mm in length, 0.8mm in depth, and 0.8mm in height.
· Its surface-mount construction allows easy soldering on compact boards.
· Packaging is in tape and reel, ideal for automated assembly.
· The thermistor is specifically designed for overcurrent protection in circuits.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PRG18BB101MB1RB:
Type | Parameter |
Type | PTC |
Number of Terminals | 2 |
Minimum Operating Temperature (°C) | -10 |
Maximum Operating Temperature (°C) | 60 |
Maximum Voltage Rating | 24V |
Resistance @ 25C (Ohm) | 100 |
Resistance Range @ 25C (Ohm) | 50 to 300 |
Percentage of Resistance Tolerance @ 25C (%) | ±20 |
Percentage of Resistance Tolerance Range @ 25C (%) | ±20 to ±25 |
Application | Over Current Protection |
Packaging | Tape and Reel |
Product Length (mm) | 1.6 |
Product Depth (mm) | 0.8 |
Product Height (mm) | 0.8 |
Construction | Solder Pad |
Mounting | Surface Mount |
Applications
The PRG18BB101MB1RB is primarily used for overcurrent protection. It safeguards sensitive electronics from sudden current surges. It is widely applied in small appliances, communication devices, and portable electronics. Its compact surface-mount design makes it suitable for high-density PCB layouts.
PRG18BB101MB1RB's Manufacturer
Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Conclusion
The Murata PRG18BB101MB1RB PTC thermistor is a reliable solution for protecting electronics against overcurrent. Its compact size, surface-mount design, and precise resistance specifications make it perfect for modern circuit boards. If you are designing compact and efficient electronics, this thermistor is a practical choice.
