What Are PLDs?
In today's world, where smart devices are everywhere, a tiny chip is quietly driving a major technological shift. This chip is the Programmable Logic Device (PLD). In modern electronic design, PLDs have become an essential core component. Unlike traditional fixed-function integrated circuits, PLDs allow engineers to program specific logic functions, giving electronic product designs unprecedented flexibility and customization. This article will take a deep dive into PLDs, covering their definition, working principle, main types, features and advantages, applications, and more.
Catalog
I. What Are PLDs?
A Programmable Logic Device (PLD) is a semiconductor integrated circuit that can be programmed and configured according to user requirements. Inside a PLD, you'll find input circuits, an AND array, an OR array, and output circuits. The relationships between inputs and outputs aren't fixed—they can be defined by the user through programming.
The basic structure of a PLD includes three main parts: the Macrocell, the Programmable Interconnect Array (PIA), and the I/O control block. The Macrocell is the basic building block responsible for implementing core logic functions. The Programmable Interconnect Array handles signal routing and connects all the macrocells. The I/O control block manages the electrical characteristics of the inputs and outputs.
Compared to fixed-logic ASICs (Application-Specific Integrated Circuits), PLDs don't require huge upfront investments or long manufacturing cycles. Developers can configure the chip's logic simply through programming. This makes PLDs more cost-effective for small-batch production or projects that require rapid iteration.
II. Work Principles
The heart of a PLD is its programmable logic structure. Typically, PLDs contain a programmable AND array and OR array, and designers connect the logic gates in these arrays through programming to achieve the desired functionality. Common programming methods include:
· Fuse technology: Logic connections are made by blowing internal fuses.
· Anti-fuse technology: Connections are created by linking previously unconnected circuits.
· EPROM/EEPROM technology: Logic is configured using erasable and programmable memory cells.
III. Main Types of PLDs
Based on structural complexity and application needs, PLDs can be divided into:
· Simple Programmable Logic Devices (SPLDs): This category includes PROMs, PLAs, PALs, and GALs. They are suitable for simple logic functions and have lower integration levels.
· Complex Programmable Logic Devices (CPLDs): Made of multiple macrocells, CPLDs are used for medium-scale logic designs and offer higher integration and flexibility.

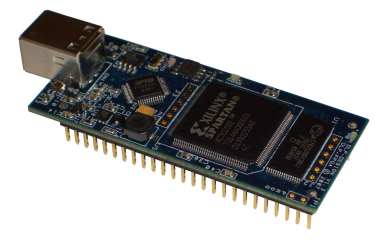

· Field-Programmable Gate Arrays (FPGAs): These devices are highly integrated and flexible, suitable for large-scale logic designs, and widely used in high-performance computing and communications.
IV. Features and Advantages
The greatest strength of PLDs is their flexibility. Engineers can program them for specific applications and quickly implement a wide range of functions. Compared to modifying physical hardware, programming is much easier and significantly reduces development and iteration time.
Using PLDs can also shorten the product development cycle. Engineers can rapidly prototype, test, and modify designs, accelerating time-to-market. PLDs can be programmed at different stages of the design process, adapting to changing market demands.
For small-batch production or fast-iteration projects, PLDs save design and manufacturing costs. Unlike ASICs, which require high initial investment, programmable logic chips are more economical.
PLDs can integrate multiple logic functions and interfaces, simplifying circuit design, reducing component count, and increasing system integration. This is especially important in compact smart devices where space is limited.
PLDs based on EEPROM and Flash technology work immediately after power-on without needing additional chips, improving system reliability and simplifying design complexity.
V. Applications
PLDs have wide applications across various industries:
· Consumer electronics: Smartphones and tablets use PLDs for complex control logic. Smart home devices, such as smart speakers, also rely on PLDs for audio signal processing.
· Industrial automation: PLDs enable real-time control and data processing. Robotic systems can respond quickly to sensor inputs and execute precise motion control. For example, high-speed sorting robots on production lines use CPLDs for precise timing management.
· Automotive electronics: Advanced driver-assistance systems (ADAS) use FPGAs to process sensor data for collision detection and adaptive cruise control.
· IoT devices: PLDs are embedded in smart sensors and gateways to support multi-protocol communication. Lattice's MachXO2 series, for example, enables interface conversion in smart home gateways.
· Communication infrastructure: High-performance PLDs are widely used in base stations and industrial control. Intel's EPM240T100C5N CPLD, operating at 304 MHz, is employed for real-time signal preprocessing.
VI. Conclusion
PLDs have become a key part of modern electronic design thanks to their flexibility, reconfigurability, and high integration. As technology advances, their performance and applications will continue to expand, meeting the demands of increasingly complex designs. No-code design tools like Texas Instruments' InterConnectStudio are lowering the barrier to PLD use. With drag-and-drop interfaces, engineers can complete design, simulation, and device configuration in minutes without deep programming knowledge. This trend points to a future where PLDs become even more widespread, empowering electronic engineers and innovators to push the industry forward.
