Electronic component packaging and memory technology are dual pillars of the hardware industry. Understanding their characteristics and applications is crucial for product design and development. In the electronics industry, packaging technology not only determines the physical protection of components but also directly affects their electrical performance, heat dissipation, and suitable use cases. Among these, SMA, SMB, and SMC are common packaging types, especially widely used in high-frequency RF components and diodes. This article provides a thorough overview of the definitions, differences, and applications of these three package types.
Catalog
IV. Comparison of SMA, SMB, and SMC
SMA (Surface Mount Assembly) refers to a component or assembly of one or more electronic components in a surface-mount package. It is a low-power, compact surface-mount packaging type, commonly used for small diodes, transient-voltage-suppression (TVS) diodes, and other low-power components. SMA packages are small, flexible to install, and ideal for devices with strict space constraints. Common SMA modules include seven-segment displays, Bluetooth modules, and Wi-Fi modules. Compared to single components in SMD (Surface Mount Device) form, SMA assemblies often include multiple functional modules, making them suitable for applications requiring integrated functionality.
SMB (Surface Mount Package B) is a medium-power surface-mount package, commonly used for voltage-regulator diodes, rectifiers, Schottky diodes, and other medium-power applications. Compared to SMA, SMB can handle higher current, making it suitable for mid-power power supplies and industrial electronic equipment. Its size and power handling capacity fall between SMA and SMC, making it ideal for electronic devices with moderate power requirements.
SMC (Surface Mount Component) is a high-power surface-mount package, often used for power diodes, rectifiers, and motor driver modules. Although larger in size, SMC packages can handle higher currents and power, and are widely used in high-power inverters, automotive electronics, and industrial automation equipment. SMC components typically have high power-handling capabilities, making them suitable for high-power applications.
Package Type | Size (L × W × H) | Power Handling |
SMA | 3.0 × 1.5 × 1.1 mm | Low Power |
SMB | 4.0 × 2.0 × 1.5 mm | Medium Power |
SMC | 5.0 × 2.7 × 2.0 mm | High Power |

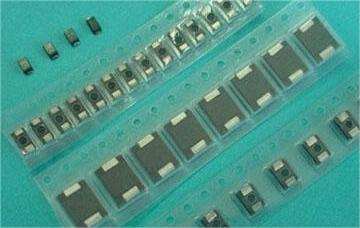

In terms of size, the relationship is SMA < SMB < SMC. This means that when PCB space is limited, engineers tend to choose SMA. When higher power handling is required, larger SMC packages may be necessary.
SMA, SMB, and SMC packages play different roles in various application fields due to their distinct performance characteristics:
· Consumer Electronics: SMA packages are widely used in smartphones, tablets, and wearable devices for power management and port protection (e.g., ESD protection for USB ports). Their compact size helps achieve thinner and lighter device designs.
· Industrial Electronics: SMB and SMC packages are common. SMB is used for industrial control boards and motor driver freewheeling protection. SMC is applied in switch-mode power supplies (SMPS) for output rectification, power factor correction (PFC) circuits, and other industrial equipment requiring higher currents.
· Automotive Electronics: High reliability and power requirements make SMC packages ideal for engine control units, LED vehicle lighting drivers, and other scenarios with high power and potential surge conditions.
TVS diodes also widely use these packages. For example, the SMAJ series (400W), SMBJ series (600W), and SMCJ series (1500W) cater to different levels of circuit protection.
As electronic devices continue to shrink in size, demand for smaller packages keeps growing. At the same time, enhanced device functionality increases power density, which calls for better thermal management solutions. The IC packaging and testing industry is currently at a key growth stage, with strong demand from AI applications and high-performance computing chips driving higher utilization of advanced packaging capacities. In 2025, the IC packaging and testing market is expected to accelerate, with projected revenue of $41.67 billion and an annual growth rate of 6.6%. Emerging technologies like panel-level packaging are gaining attention, enabling larger and rectangular packages than traditional wafers and significantly improving manufacturing efficiency. These trends will directly influence the evolution of SMA, SMB, and SMC packaging technologies, with new packaging standards likely to emerge to meet market demands.
