ADF7020BCPZ: Features, Specs & More

The ADI ADF7020BCPZ is a versatile RF transceiver designed for low-power wireless communication applications. It supports both ASK and FSK modulation techniques and delivers reliable performance across a wide frequency range. In this comprehensive article, we'll delve into the intricacies of the ADF7020BCPZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.

Catalog

ADF7020BCPZ's Overview

Key Features

Specifications

Applications

ADF7020BCPZ's Manufacturer

Conclusion

ADF7020BCPZ's Overview

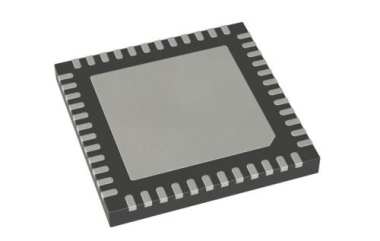

The ADF7020BCPZ is a compact, low-IF RF transceiver that integrates a transmitter and receiver into a single device. It is engineered to operate from 2.3 V to 3.6 V supply voltage and supports high linearity and programmable output power. With its advanced features such as on-chip VCO, fractional-N PLL, and integrated ADC, it simplifies RF system design and reduces component count.

Key Features

Let's delve into the standout features that make the ADF7020BCPZ a standout in the world of electronics:

· The transceiver supports ASK and FSK modulation, enabling flexible data transmission options.

· It operates in frequency bands from 431 MHz to 478 MHz and 862 MHz to 956 MHz.

· Data rates range from 0.15 kbps to 200 kbps for FSK and 0.15 kbps to 64 kbps for ASK.

· The device works with a low power supply from 2.3 V to 3.6 V, optimizing energy efficiency.

· Programmable output power ranges from −16 dBm to +13 dBm in 0.3 dBm steps.

· Receiver sensitivity reaches −119 dBm at 1 kbps FSK and −106.5 dBm at 9.6 kbps ASK, ensuring reliable signal reception.

· Low power consumption is achieved with 19 mA in receive mode and 26.8 mA in transmit mode.

· High linearity mode provides −3 dBm IIP3 for improved signal integrity.

· Integrated on-chip 7-bit ADC and temperature sensor monitor system performance.

· The fully automatic frequency control loop (AFC) compensates for ±25 ppm crystal at higher bands and ±50 ppm at lower bands.

· Additional features include digital RSSI, an integrated Tx/Rx switch, and <1 μA leakage current in power-down mode.

Specifications

Now, let's take a closer look at the technical specifications that define the capabilities of the ADF7020BCPZ:

 * ADF7020BCPZ's Datasheet

Applications

The ADF7020BCPZ is suited for a broad range of wireless applications:

· Low-cost wireless data transfer systems

· Remote control and security systems

· Wireless metering and IoT sensors

· Keyless entry devices for automotive and smart buildings

· Home automation solutions

· Process and building control systems

· Wireless voice transmission for compact devices

Its low power consumption, high sensitivity, and flexible frequency range make it ideal for battery-operated and compact systems.

ADF7020BCPZ's Manufacturer

Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.

Conclusion

The ADI ADF7020BCPZ is a powerful, low-power RF transceiver that excels in ASK and FSK wireless applications. Its wide frequency range, programmable output power, high sensitivity, and compact LFCSP packaging make it ideal for industrial and IoT designs. Engineers seeking reliable, energy-efficient wireless solutions can benefit greatly from integrating this transceiver into their products. With ADI’s support and proven track record in RF technology, the ADF7020BCPZ remains a top choice for modern wireless communication systems.
