What's the Difference Between Passive and Active Components?
In the vast world of electronic components, all parts can be categorized into two fundamental types: passive components and active components. From a simple charger to a complex supercomputer, the internal circuits are built with a combination of these two types. Understanding the difference between them is the first step to stepping into the world of electronics. This article will explore their differences in four aspects: definition, working principle, characteristics & advantages, and applications.
Catalog
III. Characteristics & Advantages
I. Definition
· Active Components: These are electronic components that require an external power source to operate and can actively amplify, rectify, or convert signals.
· Passive Components: These are electronic components that do not need an external power source and are mainly used for signal transmission, filtering, or energy storage.
II. Working Principle
Passive components operate in a relatively straightforward way:

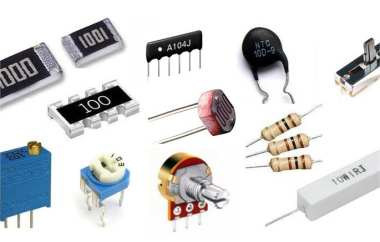

· Resistors: They resist the flow of current, converting electrical energy into heat. The voltage across them and the current passing through follow Ohm's law (V = IR).
· Capacitors: Made of two plates separated by an insulating material, they can store electrical charge and allow AC signals to pass while blocking DC signals.
· Inductors: Made from coiled wire, they store magnetic energy and resist changes in current, allowing DC to pass but impeding AC.
The behavior of passive components is predictable and linear—they don't change the essence of a signal, only attenuating, filtering, or temporarily storing it.
Active components, on the other hand, are more complex and proactive:
Take the transistor as the most fundamental active component. Typically, it has three pins (e.g., base, collector, emitter). By injecting a tiny control current or voltage into one pin (the base), you can precisely control a much larger current between the other two pins. This ability to "control a lot with a little" forms the basis of amplification and switching. Integrated circuits (ICs) take this further by integrating millions or even billions of transistors and their connections onto a tiny silicon chip, forming a highly complex functional system.
III. Characteristics & Advantages
Passive and active components show very different traits and advantages, which determine their roles in circuits.
Passive components are energy-independent. They work without external power, only passively consuming, storing, or releasing energy that passes through them. This gives them excellent linearity and high stability, with simple and reliable behavior. Their advantages lie in simple construction, low cost, and stable performance, making them the cornerstone of all circuit infrastructures.
Active components, by contrast, are energy-dependent and capable of signal control. They rely on external power to operate and, based on this, can actively amplify, switch, or shape electrical signals. This proactive control is their core advantage but also introduces non-linear behavior. Active components are structurally complex and form the heart of modern integrated circuits, enabling intelligent and sophisticated signal processing—they are the source of smart electronics.
IV. Applications
In real circuits, passive and active components always appear together, performing complementary roles.
Active components are mainly used in devices that require signal processing, amplification, and control. For example, in communication devices, they amplify and process signals; in computer systems, CPUs and GPUs use active components for high-speed computation and logic processing; in audio-video equipment and medical electronics, active components handle audio amplification, image processing, and physiological signal acquisition.
Passive components are widely used for circuit support and signal regulation. Resistors, capacitors, and inductors handle power filtering, voltage stabilization, and impedance matching; crystal oscillators and quartz crystals provide precise frequency control; transformers and inductors play key roles in power transmission and energy regulation. Although passive components don't amplify signals, they provide a stable and reliable foundation for electronic circuits.
V. Conclusion
In short, passive and active components are two inseparable pillars of electronics. Passive components are like the roads and reservoirs of a city, responsible for the basic transmission and storage of energy—stable and reliable. Active components are like traffic control centers and power plants, intelligently distributing, amplifying, and controlling the flow of information and energy—powerful and flexible.
