CMWX1ZZABZ-078: Features, Specs & More
The muRata CMWX1ZZABZ-078 is a compact and efficient RF transceiver module designed for low-power wireless communication. It supports FSK, OOK, and LoRa modulation techniques and operates reliably across a wide temperature range. With its small footprint and robust specifications, it is ideal for IoT applications, smart sensors, and wireless data transmission. In this comprehensive article, we'll delve into the intricacies of the CMWX1ZZABZ-078, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
CMWX1ZZABZ-078's Overview

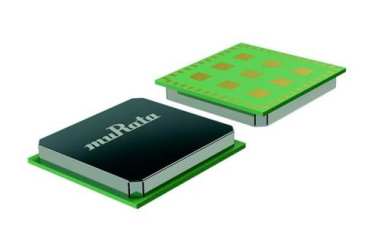

The CMWX1ZZABZ-078 is a surface-mount RF transceiver module. It enables wireless data communication between devices using FSK, OOK, or LoRa modulation techniques. The module operates at frequencies ranging from 868 MHz to 915 MHz, making it suitable for global IoT deployments. It is powered by a low-voltage supply of 3.3V and is optimized for low-power consumption.
Key Features
Let's delve into the standout features that make the CMWX1ZZABZ-078 a standout in the world of electronics:
· It achieves a maximum data rate of 4.8 Kbps.
· The operating frequency range spans 860 MHz to 940 MHz, with a typical frequency of 915 MHz.
· It operates on a supply voltage from 3V to 3.6V, with a typical voltage of 3.3V.
· The module is rated for temperatures between -40°C and 85°C, ensuring reliability in harsh environments.
· It uses the SX1276 IC, a widely trusted RF chip for low-power communication.
· The module offers serial interfaces including I2C, SPI, UART, and USB.
· It has a compact surface-mount design, with dimensions of 12.5 mm x 11.6 mm x 1.76 mm.
· The transceiver provides an output power of 14 dBm and a sensitivity of -133 dBm.
· The packaging comes in tape and reel format, suitable for automated assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the CMWX1ZZABZ-078:
Type | Parameter |
Product Category | Transceiver |
Modulation Technique | FSK/OOK/LoRa |
Maximum Data Rate | 4.8Kbps |
Maximum RF Operating Frequency Range (MHz) | 860 to 940 |
Maximum RF Operating Frequency (MHz) | 915 |
Operating Band Frequency (MHz) | 868 to 915 |
Minimum Operating Supply Voltage | 3V |
Typical Operating Supply Voltage | 3.3V |
Maximum Operating Supply Voltage | 3.6V |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Package Height | 1.76(Max) mm |
Package Width | 11.6 mm |
Package Length | 12.5 mm |
Applications
The CMWX1ZZABZ-078 is widely used in applications that require long-range, low-power wireless communication. Common use cases include:
· IoT devices for smart homes and industrial automation.
· Environmental monitoring sensors requiring reliable long-distance data transfer.
· Wireless alarm systems and security sensors.
· Asset tracking and fleet management solutions.
· Smart metering for energy, water, and gas utilities.
· Remote control systems for drones or robotics.
Its low-power design ensures that battery-operated devices maintain extended operation while providing robust connectivity.
CMWX1ZZABZ-078's Manufacturer
Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Conclusion
The muRata CMWX1ZZABZ-078 RF transceiver is a versatile, low-power module ideal for modern wireless communication applications. Its FSK/OOK/LoRa support, wide operating frequency, and compact design make it perfect for IoT, smart sensors, and remote monitoring systems. Engineers and developers seeking reliable and efficient RF solutions will find this module a valuable addition to their projects.
