What Are Discrete Components?
Even in today's world dominated by integrated circuits, those small, individually packaged components remain essential to electronic systems. With the rapid development of electronic technology, integrated circuits have become the mainstream in the electronics industry. However, whether in simple electronic toys or complex communication systems, discrete components still hold an irreplaceable position. These basic, individually packaged components, each with a single function, form the fundamental building blocks of electronic circuits and are the cornerstone of electronic technology. This article provides a comprehensive introduction to discrete components, covering their definition, working principle, characteristics and advantages, and the differences between discrete component circuits and integrated circuits.
Catalog
I. What Are Discrete Components?
III. Characteristics and Advantages
IV. Discrete Components vs. Integrated Circuits
I. What Are Discrete Components?

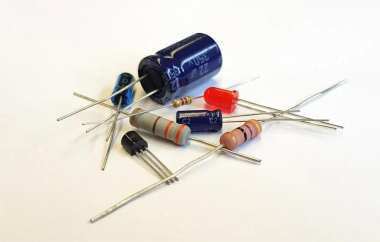

Discrete components, also known as discrete devices, are electronic components that perform a single, indivisible function. They are typically made from semiconductor materials, with electrical conductivity between that of conductors and insulators, and exist in independent packages. Each discrete component performs a specific function and must be connected externally to form a complete circuit. This is in stark contrast to integrated circuits, which combine multiple components on a single chip to achieve complex functionality.
Semiconductor discrete devices can be classified into several main categories:
· Diodes: Components with unidirectional conductivity, including rectifier diodes, Zener diodes, and Schottky diodes, commonly used for rectification, signal detection, and voltage protection circuits.
· Transistors: Including bipolar junction transistors (BJT) and field-effect transistors (FET), primarily used for signal amplification and switching control.
· Thyristors: Also known as silicon-controlled rectifiers (SCRs) or TRIACs, mainly used for switching and high-current control in AC circuits.
According to power and current ratings, discrete devices can also be divided into small-signal devices and power devices. The World Semiconductor Trade Statistics (WSTS) classifies devices with power dissipation under 1W (or rated current under 1A) as small-signal devices, while devices with power dissipation of 1W or higher (or rated current of 1A or higher) are considered power devices.
II. Working Principle
The operation of discrete components is based on the characteristics of semiconductor PN junctions. The fundamental units of semiconductor circuit functions are PN junctions formed from semiconductor materials, which are patterned on silicon wafers to create chips.
For discrete devices, only one or a few PN junctions are formed on a single wafer using doping, diffusion, or other processes, making their structure relatively simple.
Take a bistable circuit as an example: it consists of a positive feedback circuit formed by two stages of inverters and has two stable states—either BG1 is conducting and BG2 is off, or BG1 is off and BG2 is conducting.
When a trigger pulse is applied, a sharp pulse generated through differentiation acts on the base of the conducting transistor. Through positive feedback, the circuit state flips. This memory function makes bistable circuits widely used in counting, frequency division, and control circuits.
The diode operates based on the unidirectional conductivity of the PN junction. When forward-biased, the diode conducts and allows current to flow; when reverse-biased, the diode blocks current almost completely. Transistors, on the other hand, use a small current or voltage at the base (or gate) to control a larger current at the collector (or drain), enabling amplification and switching functions.
III. Characteristics and Advantages
· High Reliability: Discrete components generally have low failure rates, and when a failure occurs, it is easy to locate and replace, ensuring system stability and reliability.
· High Flexibility: Designers can freely select and combine different discrete components according to specific requirements, enabling customized circuit designs.
· Easy Maintenance: Since each discrete component has a single function, faults can be quickly identified and replaced, reducing maintenance time and cost.
· Cost Control: For small-scale production or prototype development, using discrete components can reduce research and development costs and shorten the development cycle.
IV. Discrete Components vs. Integrated Circuits
Discrete component circuits and integrated circuits differ significantly in structure, functionality, and applications.
The most obvious difference is structure. Discrete component circuits are composed of multiple individually packaged components connected externally, whereas integrated circuits integrate multiple components on a single chip. Integrated circuits use specialized semiconductor processes to pattern thousands of PN junctions, capacitors, resistors, and wiring on a tiny silicon chip to perform specific functions.
Functional complexity also differs. Each discrete component performs a single task—resistors provide resistance, capacitors store charge—while integrated circuits can handle complex signal processing and conversion tasks, such as microprocessors performing sophisticated calculations and control operations.
In terms of power handling, discrete components usually outperform integrated circuits. Discrete devices can handle higher power and voltage, making them suitable for high-power applications, while integrated circuits are primarily used for low-power scenarios, as their miniaturized structures limit power handling.
Design and production costs also vary. Designing and laying out discrete component circuits is more complex, often requiring more manual soldering and connection management, whereas once an integrated circuit is designed, mass production costs are relatively low, though initial development is expensive.
V. Conclusion
With the continuous advancement of semiconductor technology, discrete components have not been phased out by the rise of integrated circuits. On the contrary, they have found new applications in fields such as automotive electronics, energy-efficient lighting, and industrial control, maintaining steady growth. Looking ahead, with new materials and manufacturing processes, discrete components will continue to evolve, but their use alongside integrated circuits has become standard practice in the electronics industry. This collaborative development allows electronic technology to meet increasingly diverse application needs and drives the industry forward.
