SI4010-C2-GSR: Features, Specs & More
If you are developing wireless systems, the Silicon Labs SI4010-C2-GSR is a powerful choice. It combines an 8051 MCU core with a high-performance Sub-GHz RF transmitter. The device supports frequencies from 27 MHz up to 960 MHz and offers versatile modulation options, making it suitable for a wide range of applications. Its compact 14-SOIC surface-mount package ensures seamless integration into modern electronic designs. In this comprehensive article, we'll delve into the intricacies of the SI4010-C2-GSR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SI4010-C2-GSR's Overview
The SI4010-C2-GSR is a Sub-GHz RF transmitter with an integrated 8051 microcontroller core. It operates over a wide frequency range of 27 MHz to 960 MHz. The device supports FSK and OOK modulation, enabling flexible communication protocols. With 10 dBm output power and a maximum data rate of 100 kBaud, it balances signal strength and efficiency for various wireless applications.
Key Features
Let's delve into the standout features that make the SI4010-C2-GSR a standout in the world of electronics:
· It features an 8051 MCU core for on-chip processing and control.
· The transmitter supports FSK and OOK modulation for flexible signal transmission.
· It operates over a wide frequency range from 27 MHz to 960 MHz.
· It provides up to 10 dBm output power, ensuring strong wireless signals.
· The maximum data rate is 100 kBaud, suitable for low-to-medium speed data transmission.
· It supports crystal-less operation, reducing component count and design complexity.

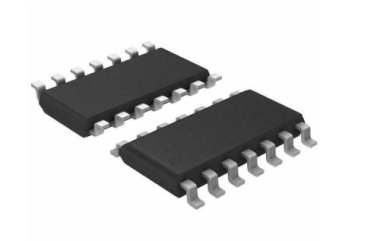

· The device has a compact 14-SOIC package for easy PCB integration.
· It operates over a voltage range of 1.8V to 3.6V.
· The operating temperature range spans -40°C to 85°C, ensuring industrial reliability.
· It comes with 4 kB RAM for lightweight data handling and buffering.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SI4010-C2-GSR:
Type | Parameter |
Frequency | 27MHz ~ 960MHz |
Applications | Garage Openers, RKE, Security Alarms |
Modulation or Protocol | FSK, OOK |
Data Rate (Max) | 100kBaud |
Power - Output | 10dBm |
Current - Transmitting | 19.8mA |
Data Interface | PCB, Surface Mount |
Antenna Connector | PCB, Surface Mount |
Memory Size | 4kB RAM |
Features | 8051 MCU Core, Crystal-less Operation |
Voltage - Supply | 1.8V ~ 3.6V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Applications
The SI4010-C2-GSR is ideal for a wide range of low-power wireless applications. Common use cases include:
· Garage door openers for residential or commercial environments.
· Remote keyless entry (RKE) systems for vehicles.
· Security alarms for home and industrial monitoring.
· IoT wireless sensors requiring compact and energy-efficient transmitters.
Its flexibility in modulation, wide frequency range, and compact form factor make it a versatile choice for wireless engineers.
SI4010-C2-GSR's Manufacturer
Silicon Labs, the visionary force behind SI7020-A20-GMR, brings decades of expertise to the table. Renowned for pushing the boundaries of innovation, Silicon Labs has consistently delivered cutting-edge solutions that redefine the possibilities in the electronics industry. SI7020-A20-GMR stands as a testament to Silicon Labs' commitment to excellence, reflecting the company's dedication to advancing technology and driving progress.
Conclusion
The SI4010-C2-GSR is a compact, crystal-less Sub-GHz RF transmitter with an 8051 MCU core. Its wide frequency range, flexible modulation options, and strong output power make it ideal for garage openers, RKE, and security applications. Engineers benefit from its low-power operation, surface-mount packaging, and industrial-grade reliability, making it a solid choice for efficient wireless system design.
