What Are Smoothing Capacitors?
At the output of a rectifier, a seemingly unremarkable electronic component plays a key role in determining the quality of a power supply: the smoothing capacitor. Smoothing capacitors are indispensable passive components in electronic power design. Their main function is to suppress the pulses generated in a rectified power circuit, turning a fluctuating direct current into a stable and reliable one. From everyday smartphone chargers to complex industrial power systems, smoothing capacitors are always at work behind the scenes. This article provides a comprehensive overview of smoothing capacitors, including their definition, working principle, types, features and advantages, and applications.
Catalog
I. What Are Smoothing Capacitors?
I. What Are Smoothing Capacitors?
Smoothing capacitors work based on the basic principle of storing and releasing electric charge. When they receive pulsating DC from a rectifier, they charge during voltage peaks and discharge during voltage valleys.
This charge-and-discharge behavior allows smoothing capacitors to effectively “fill in the gaps” in voltage fluctuations, converting a highly pulsating DC into a relatively smooth one. Unlike decoupling capacitors, which primarily target high-frequency noise, smoothing capacitors mainly handle low-frequency ripple, especially power-line frequencies (50/60Hz) and their harmonics. In a power circuit, smoothing capacitors are usually placed after the rectifier bridge and before voltage regulation circuits, forming the first line of defense in power filtering.
II. Work Principles
After AC passes through rectifier diodes, the resulting DC output is typically pulsating, with noticeable voltage ripple. A smoothing capacitor charges and discharges to fill the voltage valleys, thereby smoothing the output voltage. When input voltage rises, the capacitor stores energy by charging; when the input voltage falls, the capacitor discharges to compensate, keeping the output voltage stable. This process significantly reduces voltage fluctuations that could affect downstream circuits, improving overall system reliability.

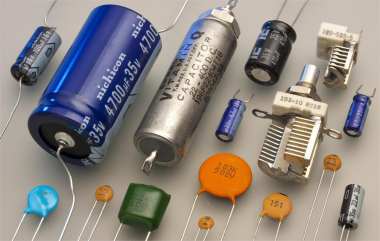

III. Main Types
Smoothing capacitors come in different types depending on materials and application scenarios:
· Aluminum Electrolytic Capacitors: The most common type for smoothing, especially in mains-frequency power applications. They offer high capacitance-to-volume ratios at a relatively low cost and can operate over a wide temperature range. However, they usually have higher ESR and a limited lifespan.
· Ceramic Capacitors: Especially multilayer ceramic capacitors (MLCCs), which have become increasingly important for smoothing applications. They feature very low ESR and ESL, making them suitable for high-frequency switching power supplies.
· Film Capacitors: For example, MKP-X2 types use metallized polypropylene films as the dielectric, providing excellent stability, low loss, and self-healing properties. These capacitors are commonly used in home appliances like induction cookers to support DC smoothing and filtering.
IV. Features and Advantages
Smoothing capacitors have several key features and benefits:
· High Capacitance: Able to store large amounts of charge and provide stable voltage output.
· Low Equivalent Series Resistance (ESR): Reduces energy loss and improves efficiency.
· Long Lifespan: High-quality capacitors last longer, reducing replacement frequency.
· High Reliability: Perform well under various operating conditions, ensuring stable system operation.
V. Applications
Smoothing capacitors are widely used across electronic devices. In linear and switching-mode power supplies (SMPS), they are indispensable for providing relatively stable input voltage to subsequent regulators or circuits.
In digital electronics, smoothing capacitors deliver clean power to microprocessors, memory, and other digital ICs. Digital circuits are highly sensitive to power ripple, which can cause malfunctions or degraded performance.
Analog circuits also rely on smoothing capacitors. In audio equipment, measurement instruments, and other analog applications, power ripple directly affects signal quality, increasing noise and reducing signal-to-noise ratio. A well-smoothed power supply is essential for high-quality analog performance.
Smoothing capacitors are also critical in industrial control systems, induction cookers, and automotive electronics. These environments demand high reliability, and proper capacitor design is a key factor in meeting these standards.
VI. Conclusion
As electronic devices evolve toward lower voltages, higher currents, and higher frequencies, the demands on smoothing capacitors continue to grow. Future capacitors will require lower ESR/ESL, higher reliability, and smaller sizes. Innovation never stops. Companies like Murata are already advancing multilayer ceramic capacitors with capacitances above 100μF, and the use of new materials and processes will continue to expand the performance limits of smoothing capacitors.
