MRF89XAM8A-I/RM: Features, Specs & More
The Microchip MRF89XAM8A-I/RM is a highly efficient RF transceiver module designed for low-power wireless communication. It operates in the sub-GHz ISM band at 868MHz and is ideal for applications requiring small form factor and reliable performance. The module integrates advanced features to reduce development time and seamlessly interface with Microchip microcontrollers. In this comprehensive article, we'll delve into the intricacies of the MRF89XAM8A-I/RM, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MRF89XAM8A-I/RM's Manufacturer
MRF89XAM8A-I/RM's Overview

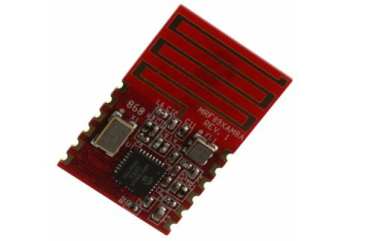

The MRF89XAM8A-I/RM is a 12-pin surface-mount RF transceiver module. It operates in the 868MHz ISM frequency band and supports low-power wireless data transmission. This module is primarily used for short-range, low-data-rate wireless applications where compact design and power efficiency are essential.
Key Features
Let's delve into the standout features that make the MRF89XAM8A-I/RM a standout in the world of electronics:
· The module is built on the MRF89XA ultra low-power sub-GHz transceiver IC.
· It supports proprietary sub-GHz wireless protocols.
· It has a simple SPI interface with interrupts for fast communication.
· Its small size of 17.8mm x 27.9mm makes it easy to surface-mount.
· The module integrates crystal, internal voltage regulator, matching circuitry, and PCB antenna.
· Integration into final products is quick, reducing development time and accelerating time-to-market.
· Fully compatible with Microchip PIC microcontroller families including PIC16, PIC18, PIC24, dsPIC33, and PIC32.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MRF89XAM8A-I/RM:
Type | Parameter |
RF Family/Standard | General ISM < 1GHz |
Protocol | - |
Frequency | 868MHz |
Data Rate | 40kbps |
Power - Output | 12.5dBm |
Sensitivity | -113dBm |
Serial Interfaces | SPI |
Antenna Type | Integrated, Trace |
Utilized IC / Part | - |
Memory Size | - |
Voltage - Supply | 2.1V ~ 3.6V |
Current - Receiving | 3mA |
Current - Transmitting | 16mA ~ 25mA |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 85°C |
Applications
The MRF89XAM8A-I/RM module is widely used in low-power wireless applications:
· IoT devices such as smart meters and home automation sensors.
· Industrial automation for monitoring and control systems.
· Consumer electronics including remote controls and wireless toys.
· Medical devices requiring low-power and reliable communication.
· Wireless alarm and security systems for residential or commercial use.
Its low power consumption and small form factor make it ideal for battery-powered devices.
MRF89XAM8A-I/RM's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The MRF89XAM8A-I/RM is a versatile, low-power 868MHz RF transceiver module ideal for modern electronics projects. Its ease of integration, SPI interface, small footprint, and compatibility with Microchip microcontrollers make it a go-to choice for IoT, industrial, and consumer wireless applications. If you are looking to minimize development time while ensuring high-quality wireless communication, this module offers a solid, practical solution.
