Are CBB Capacitors Non-Polar?

In the world of electronic components, there is one type of component that has become a favorite among hardware designers due to its stable performance and wide range of applications. CBB capacitors, officially known as metallized polypropylene film capacitors, are widely used non-polar capacitors in the electronics industry. They use metallized polypropylene film as both the dielectric and the electrode, and are wrapped in flame-retardant tape and sealed with epoxy resin. This article provides a systematic introduction to the definition, structure, features, applications, and more about CBB capacitors.

Catalog

I. What is a CBB Capacitor?

II. Structure of a CBB Capacitor

III. Features and Advantages

IV. Applications

V. How to Identify the Polarity of a CBB Capacitor?

VI. Conclusion

I. What is a CBB Capacitor?

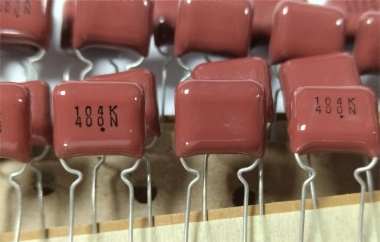

A CBB capacitor is a non-polar film capacitor made primarily from metallized polypropylene film. It uses metallized polypropylene as both the dielectric and the electrode, wrapped in flame-retardant tape and sealed with epoxy resin. CBB capacitors are known for their excellent electrical performance, high reliability, temperature resistance, small size, large capacitance, and self-healing capabilities. In terms of capacitance, CBB capacitors typically range from 1000 pF to 10 µF, with rated voltages spanning from 63 V to 2000 V. This wide range of specifications allows them to meet the needs of many different applications.

Within the classification of electronic components, CBB capacitors are often compared to CL capacitors (polyester film capacitors). While both are film capacitors, CBB capacitors perform better in high-frequency applications and temperature stability. Despite their higher cost, they remain indispensable in high-demand circuits.

II. Structure of a CBB Capacitor

The main components of a CBB capacitor include:

· Polypropylene film: Acts as the dielectric material, providing excellent insulation and high voltage resistance.

· Metallized film: A thin layer of metal, usually zinc or aluminum, is deposited on the surface of the polypropylene film to form the electrode.

· Wound structure: The metallized film and polypropylene film are layered and wound into a cylindrical shape to increase capacitance.

· Terminals: The two ends of the capacitor are connected to terminals for integration into external circuits.

III. Features and Advantages

CBB capacitors offer several key advantages:

· Non-polar: Since the electrodes are made from metallized film, there is no distinct positive or negative terminal, allowing flexible installation.

· High voltage resistance: They can handle relatively high voltages, typically rated between 63 V and 630 V.

· Low loss: Polypropylene film has a low dielectric loss, which makes CBB capacitors ideal for high-frequency applications.

· High stability: Capacitance remains stable over time and across a wide temperature range.

· Self-healing: If a local breakdown occurs, the capacitor can repair itself, extending its lifespan.

IV. Applications

CBB capacitors are widely used in various electronic devices and industrial systems, including:

· Power electronics: Filtering, power factor correction (PFC), voltage stabilization.

· Home appliances: Motor start and run capacitors, power filtering, and noise reduction.

· Automotive electronics: Control modules, ignition systems, and onboard power management.

· Lighting systems: Improving power factor in electronic ballasts and LED drivers.

· Communication and audio equipment: Signal filtering, coupling, and optimizing audio frequency response.

V. How to Identify the Polarity of a CBB Capacitor?

Although CBB capacitors are non-polar, certain specialized applications may require identifying the starting or extended polarity of the capacitor. Common methods include:

· Checking the circuit diagram: Schematics or datasheets often indicate the recommended orientation.

· Using an oscilloscope: Observing the capacitor's behavior in the circuit can provide clues about polarity.

· Measuring capacitance: In some cases, changes in capacitance can help determine the starting polarity.

VI. Conclusion

CBB capacitors have become a crucial part of the electronics industry due to their high reliability, low loss, stability, and self-healing properties. As electronic devices continue to trend toward higher frequencies and smaller sizes, the advantages of CBB capacitors will become even more pronounced. Their low loss, stability, and self-healing features also make them highly suitable for emerging fields such as renewable energy, electric vehicles, and smart home applications.
