What is a Dual-Color LED?
Dual-Color LEDs are a common component in modern electronic design. Thanks to their compact size and ability to display multiple colors, they have become key elements for device status indicators and user interface interactions. By integrating two different colors of light in a single package, they provide richer ways to convey information in electronic devices. This article dives into the definition, working principle, structural features, applications, and more of dual-color LEDs.
Catalog
I. What is a Dual-Color LED?

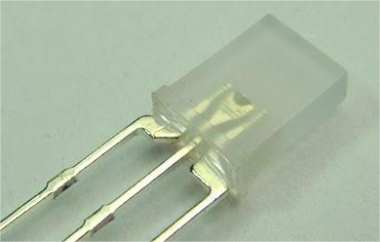

A dual-color LED is a semiconductor device that can emit two different colors of light. By integrating multiple LED chips in a single package, it achieves multi-color display functionality. Depending on the internal structure, dual-color LEDs can be two-pin or three-pin types, meeting different circuit design needs. Compared to traditional single-color LEDs, dual-color LEDs provide more status indication functions without taking up additional PCB space.
II. Work Principles
The core of a dual-color LED lies in its unique internal structure and semiconductor material combination.
· Semiconductor Materials: LEDs are made of semiconductor materials. When current flows through these materials, it excites electrons to jump from the valence band to the conduction band. As the electrons return to the valence band, energy is released in the form of light.
· Dual-Chip Structure: Inside a dual-color LED, two LED chips are encapsulated, each capable of emitting a different color, such as red and green. These chips can be independently controlled, allowing a single color to be emitted, or both colors to shine simultaneously to create a new color (for example, combining red and green to produce yellow).
· Pin Configuration: Depending on the number of pins, dual-color LEDs have two main configurations. Two-pin models have two PN junctions connected in opposite directions, where the direction of the current determines the color emitted. Three-pin models use either a common-cathode or common-anode design, with two pins controlling different colors and the third serving as the common terminal.
· Common Cathode / Common Anode: Three-pin dual-color LEDs come in either common-cathode or common-anode configurations. In a common-cathode design, the cathodes of both LEDs are connected together, while in a common-anode design, the anodes are connected. This distinction affects how the LED is wired and controlled in a circuit.
· Package Types: Dual-color LEDs come in a variety of package types, including through-hole and surface-mount. Surface-mount packages, like P-LCC-4 and standard 1206, are compact and suited for automated manufacturing. Through-hole packages, like the 5mm round-head type, are ideal for soldering applications.
III. Features and Advantages
· Dual-Color Emission: Can switch between two different colors in a single package, with common combinations like red/yellow or green/yellow.
· Space-Saving: Compared to using two separate LEDs, a dual-color LED achieves two colors in one package, saving PCB space.
· Cost-Effective: Reduces the number of components, lowering production costs.
· Simplified Circuit Design: Using dual-color LEDs reduces the complexity of the driving circuit.
· High Brightness and Efficiency: Made with wide-bandgap semiconductor materials for higher brightness and efficiency.
IV. Applications
Dual-color LEDs are widely used wherever multiple status indications or information signals are needed, such as:
· Indicator Lights: For showing device status, like power on/off or standby mode.
· Displays: To indicate different statuses on display devices.
· Automotive Lighting: Used in dashboards and vehicle lights.
· Communication Equipment: For status indication on network devices, routers, etc.
· Home Appliances: To show operational states of appliances.
V. Conclusion
As an efficient, energy-saving, and environmentally friendly light source, dual-color LEDs hold a significant position in the electronic components industry. With ongoing technological advances and growing market demand, their application prospects are broad. In the future, new semiconductor materials and packaging technologies are expected to expand the use of dual-color LEDs across even more fields.
