1-1462037-4: Features, Specs & More
TE Connectivity's 1-1462037-4 is a high-performance signal relay designed for demanding telecom and medical applications. This surface-mount DPDT relay combines precision, reliability, and compact design. Its robust construction makes it ideal for both industrial and high-tech electronics environments. In this comprehensive article, we'll delve into the intricacies of the 1-1462037-4, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
1-1462037-4's Overview

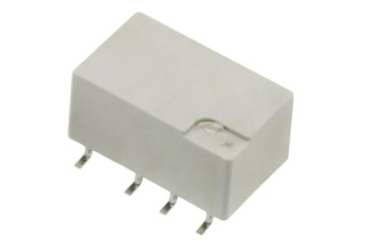

The 1-1462037-4 is a signal relay that operates on a 5VDC coil voltage. It features a Double Pole Double Throw (DPDT) configuration, also known as 2 Form C. This relay is surface-mountable and designed for compact electronics applications. It provides hermetically sealed protection to ensure reliability in challenging conditions. The device is ideal for applications requiring precise, low-power switching.
Key Features
Let's delve into the standout features that make the 1-1462037-4 a standout in the world of electronics:
· The relay operates with a 5VDC coil voltage.
· It has a DPDT (2 Form C) contact configuration.
· The relay can switch currents up to 2A.
· It supports a maximum switching voltage of 250VAC and 220VDC.
· Its maximum load switching capability reaches 500VA and 440W.
· The coil is non-latching, allowing fast reset and response.
· The relay uses a gull wing termination style for surface mount assembly.
· It is hermetically sealed for reliable protection against environmental factors.
· The must-operate voltage is 3.75VDC, while the must-release voltage is 0.5VDC.
· Operate and release times are both 3 milliseconds, ensuring rapid switching.
· The relay functions within a temperature range of -40°C to 85°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 1-1462037-4:
Type | Parameter |
Coil Voltage | 5VDC |
Contact Form | DPDT (2 Form C) |
Contact Rating (Current) | 2 A |
Switching Voltage | 250VAC, 220VDC - Max |
Load - Max Switching | 500VA, 440W |
Coil Current | 28 mA |
Coil Type | Non Latching |
Features | - |
Termination Style | Gull Wing |
Seal Rating | Sealed - Hermetically |
Coil Insulation | - |
Must Operate Voltage | 3.75 VDC |
Must Release Voltage | 0.5 VDC |
Operate Time | 3 ms |
Release Time | 3 ms |
Operating Temperature | -40°C ~ 85°C |
Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
Approval Agency | UR |
Relay Type | Telecom |
Grade | - |
Qualification | - |
Coil Resistance | 178 Ohms |
Applications
The 1-1462037-4 relay is ideal for multiple applications:
· Medical devices requiring precise, reliable switching.
· Telecom systems needing compact, high-speed relays.
· Industrial electronics with strict performance standards.
· Automation and control circuits for rapid signal management.
· Instrumentation where small size and high reliability are essential.
1-1462037-4's Manufacturer
For more than 80 years, TE engineers and product specialists have partnered with customers to advance innovation in industrial technologies. Together, they develop highly engineered connectivity and sensing solutions that make a connected world possible. As a leader in Connectors, Sensors and Passives, TE Connectivity allows electronic industry professionals to build and design modern, high-performing solutions for applications like power management, automation, military, aerospace, industrial and more.
Conclusion
The TE Connectivity 1-1462037-4 relay is a compact, reliable, and high-speed DPDT signal relay. Its hermetic sealing, precise operating parameters, and versatile applications make it a top choice for engineers in telecom, medical, and industrial electronics. With superior materials and strict quality standards, this relay guarantees durability and performance in critical electronic systems.
