What Are Position Sensors?
From smart homes to industrial robots, from car engines to surgical instruments, position sensors—key components that detect the location of objects—are quietly driving automation across industries. They can precisely determine whether an object has reached a specific position and convert that information into signals that control systems can use, enabling efficient and accurate device operation. This article provides a systematic introduction to position sensors, covering their definition, types, working principles, features and advantages, and applications.
Catalog
I. What Are Position Sensors?
A position sensor is a device that detects the location of a target object and converts it into a usable output signal. Simply put, it can tell whether an object has reached a designated position or track its position in real time. Unlike displacement sensors, which mainly measure changes in distance, position sensors focus on determining whether an object has reached a preset location. In control systems, they act as “decision makers”: when the target reaches the specified position, the sensor sends a signal to trigger subsequent actions.
II. Types of Position Sensors
Position sensors differ from displacement sensors in that they don’t measure the amount of distance traveled. Instead, they detect whether an object has arrived at a specific position. They can be classified into two main categories: contact and non-contact sensors.
· Contact sensors detect position through physical contact, activating only when two objects touch. Typical examples include limit switches and 2D matrix position sensors. Limit switches are simple, reliable, and inexpensive; when a moving object presses against the switch, its internal contacts are triggered, completing the control action. 2D matrix position sensors are usually installed inside a robot’s hand to detect the contact position with an object.
· Non-contact sensors, also called proximity sensors, detect objects without physical contact. They activate when a target comes within a predefined distance. There are many types, including electromagnetic, photoelectric, differential transformer, eddy current, capacitive, reed switch, and Hall-effect sensors. In CNC machines, non-contact sensors are widely used for tool selection on tool holders, worktable travel control, and cylinder piston stroke control.
III. Working Principles
The working principle of a position sensor depends on its type and mainly includes:

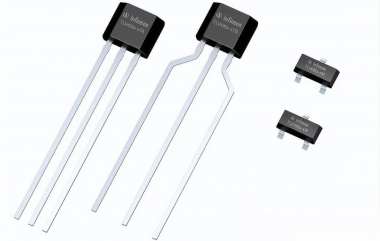

· Hall Effect: When an electric current passes through a conductor in a magnetic field, a voltage is generated perpendicular to the current and field. Position is determined by detecting this voltage change.
· Photoelectric Effect: When light hits a photosensitive element, a current is generated. Blocking or reflecting light allows detection of an object's position.
· Electromagnetic Induction: A conductor moving in a magnetic field generates an induced current, which is detected to determine position.
· Mechanical Contact: Position is detected by triggering a switch when an object physically touches a contact point.
IV. Features and Advantages
· High Precision: Accurately determines whether an object has reached a designated position, suitable for precision control systems.
· Fast Response: Non-contact sensors can quickly detect object position, meeting the demands of high-speed operations.
· Long Lifespan: Especially for non-contact types, there is no mechanical friction, so durability is high.
· Strong Adaptability: Can operate reliably in harsh environments, including high temperature, humidity, and vibration.
· Flexible Installation: Multiple structures and output options allow easy integration based on application requirements.
V. Applications
· Industrial Automation: Used for precise positioning in CNC machines, hydraulic systems, and automated production lines.
· Automotive Electronics: Detects positions of accelerator pedals, throttle valves, gear shifts, and servos.
· Robotics: Provides real-time feedback to ensure precise movement of robotic components.
· Medical Equipment: Controls position in precision instruments, ensuring accurate operations.
· Aerospace: Provides reliable position detection in complex and demanding environments.
VI. Conclusion
With the growth of smart manufacturing, autonomous driving, electric vehicles, and the industrial IoT, the demand for position sensors continues to rise. In the future, position sensors will evolve toward higher precision, greater intelligence, smaller size, and multifunctionality. Coupled with wireless communication and data analytics, they will enable smarter industrial control and monitoring.
