ANT016008LCS2442MA2: Features, Specs & More
The TDK ANT016008LCS2442MA2 is a high-performance multilayer antenna designed for modern wireless applications. It operates at a center frequency of 2442MHz and supports a linear polarization type. This chip antenna offers a compact, surface-mount design ideal for space-constrained electronic devices. In this comprehensive article, we'll delve into the intricacies of the ANT016008LCS2442MA2, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ANT016008LCS2442MA2's Overview
ANT016008LCS2442MA2's Manufacturer
ANT016008LCS2442MA2's Overview

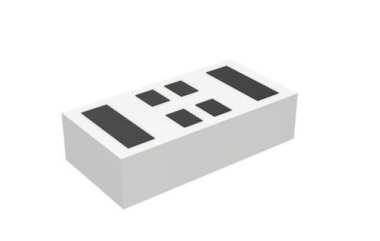

The ANT016008LCS2442MA2 is a multilayer antenna that operates in the 2.4GHz frequency band. It is a surface-mount device (SMD) with a linear polarization type, designed to deliver stable signal performance in wireless communication systems. Its compact size and efficient design make it suitable for devices with limited PCB space while ensuring reliable data transmission.
Key Features
Let's delve into the standout features that make the ANT016008LCS2442MA2 a standout in the world of electronics:
· The antenna operates from 2400MHz to 2484MHz, covering Wi-Fi and Bluetooth bands.
· It supports linear polarization for consistent signal orientation.
· The device has an impedance of 50 Ohms for optimal power transfer.
· Maximum VSWR is 3, ensuring efficient signal transmission.
· It can function within temperatures ranging from -40°C to 85°C.
· The package height is 0.4mm, width 0.8mm, and length 1.6mm.
· It comes in tape and reel packaging for automated assembly.
· The chip features a compact 2-pin design suitable for PCB mounting.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ANT016008LCS2442MA2:
Type | Parameter |
Type | Multilayer |
Polarization Type | Linear |
Minimum Frequency (MHz) | 2400 |
Center Frequency (MHz) | 2442 |
Maximum Frequency (MHz) | 2484 |
Maximum VSWR | 3 |
Impedance (Ohm) | 50 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.4(Max) |
Package Width | 0.8 |
Package Length | 1.6 |
PCB changed | 2 |
Supplier Package | Chip |
Pin Count | 2 |
* ANT016008LCS2442MA2's Datasheet
Applications
The ANT016008LCS2442MA2 antenna is ideal for applications that require compact, high-frequency wireless performance. Typical uses include:
· Internet of Things (IoT) devices and smart sensors.
· Wearable electronics and health-monitoring devices.
· Wireless modules for consumer electronics.
· Industrial automation systems requiring reliable 2.4GHz connectivity.
· Embedded devices with limited PCB space.
ANT016008LCS2442MA2's Manufacturer
TDK Corporation was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree.
Conclusion
The TDK ANT016008LCS2442MA2 is a compact, high-performance multilayer antenna. It delivers excellent signal quality across 2400–2484MHz. Its surface-mount design and robust specifications make it ideal for modern wireless devices. Engineers and designers can rely on this antenna for both consumer and industrial applications. Its efficiency, durability, and small footprint make it a top choice for electronics integration.
