H2U14W1H1A0400: Features, Specs & More
In the fast-evolving world of electronics, antennas play a crucial role in ensuring reliable wireless communication. The Unictron H2U14W1H1A0400 is a high-performance ceramic chip antenna designed for modern devices. It offers compact design, efficient signal transmission, and reliable performance across various applications. In this comprehensive article, we'll delve into the intricacies of the H2U14W1H1A0400, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
H2U14W1H1A0400's Overview

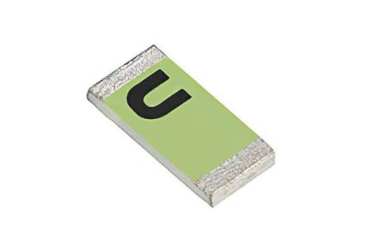

The H2U14W1H1A0400 is a ceramic chip antenna. It operates linearly with a frequency range between 1560MHz and 1606MHz. This antenna is specifically designed for surface-mount applications. It is a small, efficient solution for devices that require reliable wireless communication.
Key Features
Let's delve into the standout features that make the H2U14W1H1A0400 a standout in the world of electronics:
· The H2U14W1H1A0400 has a typical antenna gain of 3.3dBi.
· It maintains a maximum voltage standing wave ratio (VSWR) of 2.
· The antenna operates with an impedance of 50 Ohms.
· It supports a maximum input power of 2000mW.
· The device functions reliably in temperatures ranging from -40°C to 85°C.
· It comes in tape and reel packaging for automated assembly.
· The antenna uses surface mount technology for easy PCB integration.
· Its compact package dimensions are 3.2mm in length, 1.6mm in width, and 0.5mm in height.
· The H2U14W1H1A0400 has two pins for electrical connection.
· It is suitable for 2-layer PCB designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the H2U14W1H1A0400:
Type | Parameter |
Type | Ceramic Chip |
Polarization Type | Linear |
Minimum Frequency (MHz) | 1560 |
Maximum Frequency (MHz) | 1606 |
Typical Antenna Gain | 3.3dBi |
Maximum VSWR | 2 |
Impedance (Ohm) | 50 |
Maximum Input Power (mW) | 2000 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.5 mm |
Package Width | 1.6 mm |
Package Length | 3.2 mm |
PCB changed | 2 |
Supplier Package | Chip |
Pin Count | 2 |
Applications
· The Unictron H2U14W1H1A0400 is suitable for GPS modules.
· It can be integrated into IoT devices for wireless communication.
· The antenna works well in smart meters and tracking devices.
· It is ideal for portable electronics requiring compact antenna solutions.
· The device can be used in industrial and automotive wireless systems.
H2U14W1H1A0400's Manufacturer
Unictron Technologies Corporation (UTC) is a leading provider of antennas, antenna modules, and piezoelectric ceramic elements in Taiwan. Founded in 1988, Unictron started out as an electronic components distributor in Taipei, Taiwan. They now have established their own product developing team and manufacturing facilities in Hsinchu, Taiwan. Their two major product groups are antennas and antenna modules for wireless communications and piezoceramic elements for devices used in various industrial applications.
Conclusion
The Unictron H2U14W1H1A0400 ceramic chip antenna is a compact, reliable, and efficient solution for modern electronics. Its high gain, linear polarization, and surface mount design make it an excellent choice for GPS, IoT, and portable devices. With a robust operating temperature range and tape-and-reel packaging, it is ready for scalable manufacturing.
