RN-SMA-S: Features, Specs & More
In today's connected world, wireless communication components play a critical role in electronics. The Microchip RN-SMA-S is a specialized antenna designed for Bluetooth and Wi-Fi applications. It is compact, reliable, and tailored to deliver efficient UHF signal transmission. In this comprehensive article, we'll delve into the intricacies of the RN-SMA-S, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
RN-SMA-S's Overview

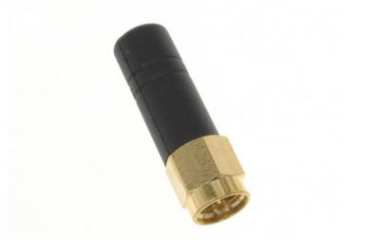

The RN-SMA-S is a Bluetooth/Wi-Fi antenna manufactured by Microchip Technology. It is specifically designed to operate in the 2.4GHz frequency band. This antenna delivers moderate gain while maintaining a compact form factor for easy integration. The product is packaged in a bag and is actively available for purchase.
Key Features
Let's delve into the standout features that make the RN-SMA-S a standout in the world of electronics:
· The RN-SMA-S antenna operates in the UHF frequency group ranging from 2GHz to 3GHz.
· It supports a single frequency band with a center frequency of 2400 MHz.
· The antenna has a whip, straight design suitable for various wireless devices.
· It features an SMA Male termination for reliable connection to wireless modules.
· The antenna provides a gain of 0.56dB to ensure stable signal performance.
· The product is packaged in a bag with a package length of 28.4 mm.
· The RN-SMA-S is not RoHS compliant and contains substances exceeding SVHC thresholds.
· It is not intended for automotive applications and does not support PPAP.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the RN-SMA-S:
EU RoHS | Not Compliant |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8544.19.00.00 |
SVHC | Yes |
SVHC Exceeds Threshold | Yes |
Automotive | No |
PPAP | No |
Type | Bluetooth/Wi-Fi |
Antenna Type | Whip, Straight |
Number of Bands | 1 |
Frequency Group | UHF (2GHz ~ 3GHz) |
Center Frequency (MHz) | 2400 |
Termination | SMA Male |
Gain | 0.56dB |
Packaging | Bag |
Package Length | 28.4 |
Applications
The RN-SMA-S antenna is widely used in various wireless communication systems. Typical applications include:
· Bluetooth-enabled IoT devices and smart sensors.
· Wi-Fi routers, repeaters, and access points.
· Embedded systems requiring compact antenna solutions.
· Wireless development kits for prototyping and testing.
· Portable electronic devices where signal stability is critical.
RN-SMA-S's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip RN-SMA-S is a reliable, compact, and efficient antenna solution for Bluetooth and Wi-Fi applications. Its simple integration, SMA Male termination, and UHF performance make it ideal for engineers and designers in the wireless communication space. While it is not RoHS compliant and exceeds SVHC thresholds, its technical specifications and practical design ensure it remains a popular choice for active, non-automotive projects.
