What Are Reflective Optical Interrupters?

Reflective Optical Interrupters are common sensor components in the electronics industry, widely used in automation, consumer electronics, office equipment, and more. Their main function is to detect whether an object blocks or reflects light, enabling non-contact switch control. This article will dive into the definition, working principle, typical specifications, features and advantages, and applications of reflective optical interrupters.

Catalog

I. What Are Reflective Optical Interrupters?

II. Working Principle

III. Typical Specifications

IV. Features and Advantages

V. Applications

VI. Conclusion

I. What Are Reflective Optical Interrupters?

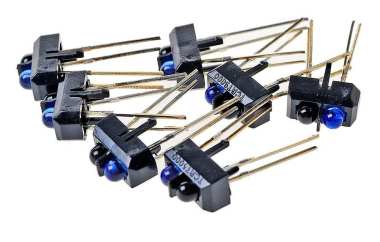

A reflective optical interrupter is a proximity or object detection device. Its LED emits light, which is reflected off the surface of a target object back to a receiver (usually a phototransistor or photodiode). The receiver senses the reflected light and outputs a signal. Unlike transmissive interrupters, where the emitter and receiver face each other and the light beam is interrupted when blocked, reflective types only need a single emitter + receiver combination aimed at the reflective surface.

II. Working Principle

The reflective optical interrupter works by detecting reflected light. When the LED shines on an object, some light bounces back to the receiver, triggering a change in the output signal. This non-contact detection method offers fast response and simple design.

III. Typical Specifications

Here are some common reflective optical interrupter models and their main specs:

Note: Specs are for reference only; exact values may vary depending on manufacturer and model.

IV. Features and Advantages

· Non-Contact Detection: This is the most notable feature. Unlike mechanical switches, there are no physical contacts to wear out, making them highly reliable.

· Simple Structure: Only an LED + receiver combo, compact and cost-effective.

· Fast Response: Photonic response is rapid, with some high-end models reaching 20 μs, making them ideal for high-speed detection tasks.

· Flexible Applications: Can detect a variety of materials and conditions, such as white paper, labels, plastics, clothing edges, paper alignment, and position markers.

V. Applications

Reflective optical interrupters are used across many electronic devices:

· Office Automation: Widely used in printers, copiers, and projectors for paper size sensing, paper feed detection, and motor operation sensing via non-contact switches.

· Industrial Automation: Common in conveyor systems, paper feeding mechanisms, and assembly line automation for precise object detection, monitoring object position and movement.

· Consumer Electronics: Used in devices like mice and scanners. In smart home setups, they’re used in infrared-sensing fixtures like automatic faucets and smart hygiene devices.

· Automotive Electronics: Applied in gear position sensing and seatbelt detection, where durability and reliability are critical, meeting strict automotive standards.

VI. Conclusion

The technology behind reflective optical interrupters continues to evolve. With manufacturers introducing smaller, more efficient models and innovative three-in-one modules, these components will keep playing a key role in the miniaturization and smart evolution of electronic devices. Looking ahead, as Industry 4.0 and IoT technologies expand, this seemingly simple component will quietly keep modern technology running with precision behind the scenes.
