Why MOSFETs Heat Up in Inverters?
In inverter design, the issue of MOSFET heating has been a major headache for many electronic engineers. It doesn't just affect system efficiency—it also impacts product reliability and lifespan.
As the core component for energy conversion, an inverter's performance and stability directly influence the proper operation of the entire electronic system. MOSFETs, as the key switching devices in inverters, have long been a focal point of industry concern when it comes to heat.
Statistics show that over 70% of inverter failures are related to power device overheating. Understanding the mechanisms behind MOSFET heating and implementing effective thermal management measures is crucial to ensuring reliable inverter operation.
Catalog
II. Causes of MOSFET Heating in Inverters
1. Conduction Resistance Heating
2. Switching Frequency Heating

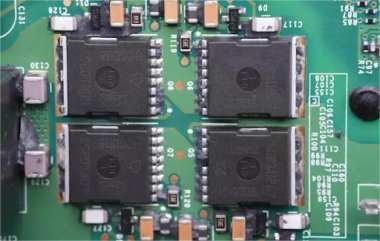

I. What is a MOSFET?
A MOSFET, or Metal-Oxide-Semiconductor Field-Effect Transistor, is a voltage-controlled semiconductor device. It regulates the current flow between the drain and source terminals through the gate voltage.
In inverter circuits, MOSFETs mainly act as switches, using high-frequency operations to convert DC into AC. Ideally, a MOSFET would have zero resistance when on and infinite resistance when off, producing no power loss.
In reality, however, MOSFETs always have some resistance and parasitic parameters, which inevitably result in power loss during operation. This loss manifests as heat, raising the device's temperature.
II. Causes of MOSFET Heating in Inverters
The reasons why MOSFETs heat up in inverters can be summarized as follows:
1. Conduction Resistance Heating
When a MOSFET is conducting, there is a certain resistance (R_DS(on)) between the source and drain. According to Ohm’s law, current flowing through a conductor generates heat proportional to the resistance. The higher the conduction resistance, the more heat is generated. Choosing MOSFETs with lower R_DS(on) can significantly reduce heating.
2. Switching Frequency Heating
Inverters control output waveforms via high-frequency switching. To switch rapidly, MOSFETs need fast switching capabilities. During the transition from on to off, voltage and current coexist for a short period, producing power loss. High-frequency switching increases this loss, causing MOSFETs to heat up.
3. Excessive Load Current
The output load current directly affects MOSFET heating. Higher load currents force MOSFETs to conduct more, which increases conduction losses and heat generation. In high-power applications, like motor drives, fluctuations in load current make thermal management even more critical.
4. Overall Power Loss
Inverters consume power not just to supply the load, but also for internal operations, such as control circuits and gate drivers. This power ultimately turns into heat, adding to MOSFET temperature. Optimizing overall inverter efficiency helps reduce unnecessary heat generation.
5. Poor Thermal Design
The heat generated by MOSFETs must be effectively dissipated through a proper thermal management system. Poor design—such as insufficient heatsink area, poor contact between MOSFET and heatsink, or inefficient air cooling—can cause heat buildup, raising MOSFET temperatures and affecting performance and lifespan.
6. High Ambient Temperature
The operating environment of the inverter directly influences MOSFET heating. In high-temperature conditions, the conduction resistance of MOSFETs rises, leading to more power loss and higher temperatures. Excessive heat can also accelerate aging and reduce reliability. Maintaining a controlled operating environment is therefore crucial for limiting MOSFET heating.
III. Conclusion
MOSFET heating is a key factor affecting inverter performance and reliability. By analyzing the causes and implementing optimized measures, MOSFET temperatures can be effectively reduced, improving inverter efficiency and longevity.
To tackle the challenge of MOSFET heating, engineers need a system-level approach with multi-layered thermal management strategies. From carefully selecting low-resistance devices and optimizing gate driver circuits, to setting appropriate switching frequencies and designing efficient thermal structures, every detail plays a critical role in ensuring reliable inverter operation.
