VO14642AABTR: Features, Specs & More
When precision, speed, and reliability matter, the Vishay Semiconductor Opto Division VO14642AABTR stands out as a compact, high-performance solid-state relay (SSR) for today's demanding electronic systems. This component is widely used in automation, industrial control, and communication circuits, offering dependable isolation and efficient power switching in a small form factor. In this comprehensive article, we'll delve into the intricacies of the VO14642AABTR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

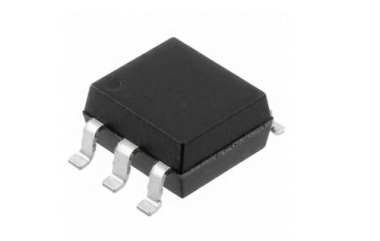

VO14642AABTR's Overview
The Vishay VO14642AABTR is a solid-state relay (SSR) designed to control AC or DC loads through MOSFET output technology. It replaces traditional electromechanical relays with faster response times and longer operational life. This relay provides galvanic isolation between input and output circuits, ensuring system safety and stable performance.
Key Features
Let's delve into the standout features that make the VO14642AABTR a standout in the world of electronics:
· The relay supports DC input control, ensuring consistent switching performance in low-voltage circuits.
· The input voltage range operates from 1 V to 1.6 V DC for efficient triggering.
· The device handles a maximum output voltage of 60 V and output current up to 2 A, ideal for both AC and DC loads.
· The relay provides 5300 VRMS isolation voltage between input and output, enhancing system safety.
· The MOSFET output ensures fast, noise-free operation and low power loss.
· The turn-on and turn-off times are both 0.8 ms, allowing for rapid switching cycles.
· The leakage current remains under 1 µA, maintaining high reliability in sensitive circuits.
· The component dissipates a maximum power of 330 mW, supporting energy-efficient operation.
· The operating temperature range extends from -55°C to +85°C, making it suitable for harsh environments.
· The compact PDIP SMD package allows easy surface mounting and automated production compatibility.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the VO14642AABTR:
Type | Parameter |
Input Type | DC |
Minimum Input Voltage (V) | 1 |
Maximum Input Voltage (V) | 1.6 |
Maximum Input Current (mA) | 50 |
Maximum Output Voltage (V) | 60 |
Maximum Output Current (A) | 2 |
Output Device | MOSFET |
Output Type | AC|DC |
I/O Isolation Voltage (V) | 5300(RMS) |
Maximum Off-State Leakage Current (uA) | 1 |
Maximum Power Dissipation (mW) | 330 |
Maximum Turn-On Time (ms) | 0.8 |
Maximum Turn-Off Time (ms) | 0.8 |
Circuit Arrangement | 1 Form A |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 3.55 mm |
Package Width | 6.65 mm |
Package Length | 7.6(Max) mm |
PCB changed | 6 |
Standard Package Name | DIP |
Supplier Package | PDIP SMD |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The Vishay VO14642AABTR is designed for a wide range of electronic systems that demand isolation, reliability, and silent switching:
· Industrial automation: Ideal for controlling actuators, sensors, and microcontrollers.
· Telecommunication equipment: Provides low-noise switching for signal routing and line protection.
· Security and surveillance systems: Ensures stable operation in camera and alarm modules.
· Test and measurement devices: Offers precision control without mechanical wear.
· Consumer electronics: Used in power management and load control applications.
VO14642AABTR's Manufacturer
Founded in 1962, Vishay Semiconductor is a global leader in electronic components and semiconductors. With a rich history spanning over six decades, the company has consistently pushed the boundaries of innovation, establishing itself as a trusted name in the electronics industry. Vishay Semiconductor is renowned for its commitment to quality, precision, and reliability in manufacturing a wide range of components, including resistors, capacitors, diodes, and MOSFETs. Vishay Opto is one of the largest suppliers of optical sensors, optocouplers, and LEDs to Tier1 and OEM automotive manufacturers.
Conclusion
The Vishay VO14642AABTR Solid-State Relay offers an outstanding balance of performance, durability, and versatility for both AC and DC load control. Whether used in industrial automation, communication systems, or precision instruments, it ensures silent, fast, and efficient switching. With Vishay's reputation for quality and innovation, the VO14642AABTR is a trusted choice for engineers building next-generation electronic systems.
