PVU414S-TPBF: Features, Specs & More
When it comes to modern power electronics, reliability, precision, and compact design define the backbone of efficient circuit systems. One standout component meeting these demands is the Infineon PVU414S-TPBF, a high-performance solid-state relay (SSR) that provides both DC input control and AC/DC output versatility in a small yet robust package. In this comprehensive article, we'll delve into the intricacies of the PVU414S-TPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PVU414S-TPBF's Overview

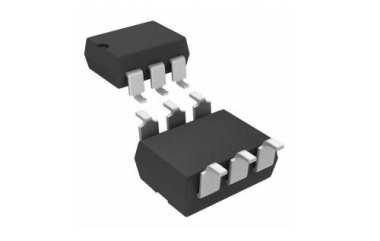

The Infineon PVU414S-TPBF is a MOSFET output solid-state relay that operates with a DC input signal to control high-voltage AC or DC loads. Unlike traditional electromechanical relays, it uses semiconductor switching elements, eliminating mechanical wear and ensuring long operational life. It provides 25mA maximum input current and can switch loads up to 400V at 0.14A, ensuring consistent performance across a wide range of control systems.
Key Features
Let's delve into the standout features that make the PVU414S-TPBF a standout in the world of electronics:
· The PVU414S-TPBF supports both AC and DC output operation, providing design flexibility.
· The relay offers 4,000V RMS isolation voltage, ensuring safe electrical separation between control and load sides.
· The MOSFET output device ensures fast, noise-free, and reliable switching.
· The device operates within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
· The surface-mount PDIP SMD package supports automated assembly for modern PCB production lines.
· The low-profile design (3.42mm height) saves board space in compact electronic systems.
· The tape and reel packaging simplifies mass production and automated pick-and-place processes.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PVU414S-TPBF:
Type | Parameter |
Input Type | DC |
Maximum Input Current (mA) | 25 |
Maximum Output Voltage (V) | 400 |
Maximum Output Current (A) | 0.14@Ta=40C |
Output Device | MOSFET |
Output Type | AC|DC |
I/O Isolation Voltage (V) | 4000(RMS) |
Circuit Arrangement | 1 Form A |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 3.42(Max) mm |
Package Width | 6.47(Max) mm |
Package Length | 8.63(Max) mm |
PCB changed | 6 |
Standard Package Name | DIP |
Supplier Package | PDIP SMD |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The Infineon PVU414S-TPBF is suitable for a broad range of applications where high-voltage control and electrical isolation are critical:
· Industrial automation systems requiring fast and reliable load switching.
· Home appliances for silent operation without mechanical relays.
· Test and measurement equipment demanding precision and stability.
· Medical instrumentation where low EMI and high isolation are essential.
· Security systems and sensor interfaces requiring compact switching solutions.
· HVAC control modules that demand long-term reliability and safety.
PVU414S-TPBF's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon PVU414S-TPBF Solid State Relay is a dependable component for engineers seeking efficient and noise-free switching across AC/DC circuits. With its compact SMD packaging, robust isolation, and wide operating range, it's well-suited for applications that demand precision, safety, and longevity. Whether in industrial automation, consumer electronics, or medical systems, this SSR embodies Infineon's expertise in delivering durable and high-performance semiconductor solutions.
