IS25LP064A-JKLE: Features, Specs & More
The ISSI IS25LP064A-JKLE is a high-performance NOR Flash memory chip designed for fast, reliable, and versatile data storage. This memory device supports Serial Peripheral Interface (SPI, Dual SPI, Quad SPI), operates over a wide voltage range, and is optimized for embedded systems and consumer electronics. In this comprehensive article, we'll delve into the intricacies of the IS25LP064A-JKLE, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
IS25LP064A-JKLE's Manufacturer
IS25LP064A-JKLE's Overview

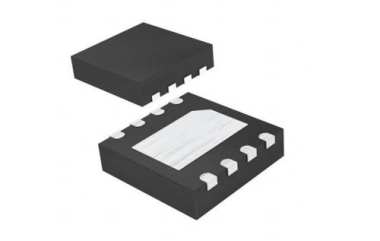

The IS25LP064A-JKLE is a 64M-bit NOR Flash memory device manufactured by Integrated Silicon Solution, Inc. (ISSI). It stores data in a sectored architecture, allowing selective erasure and programming at the sector level. The chip is designed to provide high-speed synchronous access, low power consumption, and broad compatibility with standard SPI interfaces. Its compact 8-pin WSON package makes it suitable for space-constrained applications.
Key Features
Let's delve into the standout features that make the IS25LP064A-JKLE a standout in the world of electronics:
· The IS25LP064A-JKLE supports NOR Flash memory architecture.
· It provides a 64M-bit memory density for medium-sized embedded storage needs.
· The chip uses a sectored organization with 4Kbyte x 2048 sector size.
· It supports SPI, Dual SPI, and Quad SPI interfaces for fast communication.
· The maximum operating frequency reaches up to 133 MHz.
· Access times are extremely low at 8ns, ensuring rapid read operations.
· The device supports programmability for flexible data updates.
· It operates reliably over a wide voltage range of 2.3V to 3.6V.
· It can function in extended temperature ranges from -40°C to 105°C.
· The chip supports fast erase and programming times, enhancing device efficiency.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the IS25LP064A-JKLE:
Type | Parameter |
Cell Type | NOR |
Chip Density (bit) | 64M |
Architecture | Sectored |
Boot Block | No |
Block Organization | Symmetrical |
Address Width (bit) | 24 |
Sector Size | 4Kbyte x 2048 |
Page Size | 256byte |
Number of Bits/Word (bit) | 8 |
Number of Words | 8M |
Programmability | Yes |
Timing Type | Synchronous |
Max. Access Time (ns) | 8 |
Maximum Erase Time (s) | 45/Chip |
Maximum Programming Time (ms) | 0.8/Page |
Interface Type | Serial (SPI, Dual SPI, Quad SPI) |
Maximum Operating Frequency (MHz) | 133 |
Minimum Operating Supply Voltage (V) | 2.3 |
Typical Operating Supply Voltage (V) | 2.5|3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Programming Voltage (V) | 2.3 to 3.6 |
Operating Current (mA) | 14 |
Program Current (mA) | 25 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Supplier Temperature Grade | Extended |
Command Compatible | Yes |
ECC Support | No |
Support of Page Mode | No |
Minimum Endurance (Cycles) | 100000 |
Packaging | Bulk |
Mounting | Surface Mount |
Package Height | 0.73 mm |
Package Width | 6 mm |
Package Length | 5 mm |
PCB changed | 8 |
Standard Package Name | SON |
Supplier Package | WSON EP |
Pin Count | 8 |
Lead Shape | No Lead |
Applications
The IS25LP064A-JKLE is ideal for a wide range of electronics applications:
· Embedded Systems: It provides reliable storage for firmware and configuration data.
· IoT Devices: Its low power consumption suits battery-operated devices.
· Consumer Electronics: Used in MP3 players, smart home devices, and digital appliances.
· Industrial Electronics: With extended temperature support, it works in harsh environments.
· Automotive Systems: Supports robust SPI interface for in-vehicle electronics.
IS25LP064A-JKLE's Manufacturer
Integrated Silicon Solution, Inc. (ISSI), is a technology leader that designs, develops, and markets high performance integrated circuits for the following key markets: (i) automotive, (ii) communications, (iii) digital consumer, and (iv) industrial and medical. Their primary products are high speed and low power SRAM and low and medium density DRAM. The company also designs and markets NOR flash products and high performance analog and mixed signal integrated circuits.
Conclusion
The IS25LP064A-JKLE is a versatile NOR Flash memory device that balances speed, capacity, and reliability. Its broad operating voltage, extended temperature range, and flexible SPI interface make it suitable for embedded electronics across multiple industries. If you are seeking efficient, reliable, and compact memory for your next project, the IS25LP064A-JKLE is an excellent choice.
