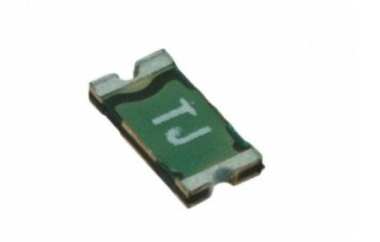

PTS12066V100: Features, Specs & More
When it comes to protecting electronic circuits from overcurrent, the Coiltronics (Eaton) PTS12066V100 stands out as a reliable choice. This component is a PTC resettable fuse designed for surface mount applications. It delivers consistent performance in low-voltage circuits while maintaining compact dimensions suitable for modern electronics. In this comprehensive article, we'll delve into the intricacies of the PTS12066V100, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PTS12066V100's Overview
The PTS12066V100 is a PTC (Positive Temperature Coefficient) resettable fuse manufactured by Coiltronics, a brand under Eaton. It is specifically engineered to limit current and protect circuits from short circuits and overload conditions. Unlike traditional fuses, the PTS12066V100 automatically resets after the fault is removed, providing repeated protection without replacement.
Key Features
Let's delve into the standout features that make the PTS12066V100 a standout in the world of electronics:
· The PTS12066V100 supports a maximum voltage rating of 6VDC.
· It can handle a hold current of 1A and a trip current of 1.8A.
· The minimum initial resistance is 0.065 Ohm.
· The maximum post-trip resistance is 0.21 Ohm.
· Typical power dissipation reaches 0.8 watts.
· The maximum trip time is 0.3 seconds at 8A.
· It features two terminals with a solder pad termination style.
· The fuse operates in a temperature range from -40°C to 85°C.
· It is packaged in tape and reel for automated assembly.
· The physical dimensions are 3.5 x 1.8 x 0.88 mm, suitable for compact designs.
· Surface mount technology ensures easy PCB integration.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PTS12066V100:
Type | Parameter |
Maximum Voltage Rating | 6VDC |
Maximum Current Rating (A) | 100 |
Hold Current (A) | 1 |
Trip Current (A) | 1.8 |
Minimum Initial Resistance (Ohm) | 0.065 |
Maximum Post Trip Resistance (Ohm) | 0.21 |
Typical Power Dissipation (W) | 0.8 |
Maximum Trip Time (S) | 0.3@8A |
Termination Style | Solder Pad |
Number of Terminals | 2 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Size (mm) | 3.5 X 1.8 X 0.88 |
Product Length (mm) | 3.5(Max) |
Product Depth (mm) | 1.8(Max) |
Product Height (mm) | 0.88(Max) |
Package/Case | 1206 |
Mounting | Surface Mount |
Applications
The PTS12066V100 is widely used in electronics applications requiring reliable overcurrent protection. Common applications include:
· Battery-powered devices.
· Portable consumer electronics.
· Circuit boards in telecommunications.
· Low-voltage power supply protection.
· USB and charging ports.
· Automotive low-voltage circuits.
PTS12066V100's Manufacturer
Coiltronics / Eaton, a division of Cooper Industries that has been acquired by Eaton, offers a broad range of leading-edge power magnetics products primarily used in DC-DC and switchmode applications requiring high-frequency magnetics. The company's innovative line includes surface mount power inductors/transformers, cold cathode fluorescent lamp inverter transformers, high-frequency buck/boost inductors, high-density SMT chip inductors, and low-cost powdered iron core toroidal inductors.
Conclusion
The Coiltronics PTS12066V100 is a small but powerful PTC resettable fuse. It provides reliable circuit protection, fast trip response, and automatic reset capability. Its 1206 SMD form factor and versatile specifications make it ideal for compact and low-voltage electronics. Designers can trust it for efficient, long-term overcurrent protection in demanding applications.
