Do CBB Metallized Film Capacitors Fail?
In the field of electronic components, many engineers and hobbyists hold a common misconception about CBB metallized film capacitors, believing that these capacitors do not fail like ordinary electrolytic capacitors. However, practical applications and experimental data show that CBB capacitors are also subject to various types of failures. This article will use real-world cases to analyze in detail the failure modes, causes, and solutions for CBB metallized film capacitors.
Catalog
I. What is a CBB Metallized Film Capacitor?
I. What is a CBB Metallized Film Capacitor?

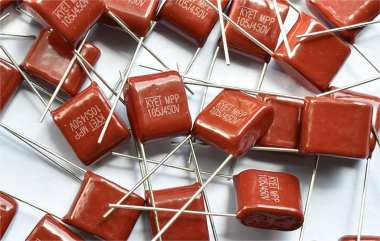

A CBB metallized polypropylene film capacitor is a non-polar capacitor that uses metallized polypropylene film as the dielectric. It is made into a cylindrical shape using a non-inductive winding method and encapsulated with flame-retardant epoxy resin on the outside.
The capacitor has a thin layer of metallized electrode (such as aluminum or aluminum alloy) on the surface or inside the film. It offers high insulation resistance, good frequency characteristics, and low dielectric loss. Due to the metallized film, this type of capacitor has a self-healing feature: when a small dielectric breakdown occurs, the metallized layer evaporates or ruptures locally, isolating the breakdown path and restoring the capacitor's insulation.
CBB capacitors are widely used in high-frequency circuits, resonant circuits, and high-voltage environments.
II. Failure Modes
In actual applications, CBB metallized film capacitors can exhibit the following typical failure or degradation phenomena when subjected to adverse conditions:
· Capacitance decrease is the most common failure. Experiments show that CBB capacitors in long-term operation gradually lose capacitance, sometimes dropping below the nominal allowable range. For example, in a high-frequency welding machine case, a capacitor with a rated value of 3.3 µF was measured to have dropped to 3.2–3.3 µF.
· Reduced voltage withstand capability is also typical. In the same batch of CBB capacitors, some samples showed self-healing discharge at 300 V DC, far below the nominal 600 V rating. Notably, the lower the capacitance, the worse the voltage performance tends to be.
· Physical changes include damage to the external encapsulation and evaporation of the internal metallized layer. Disassembly analysis shows that the outer layer is usually severely damaged, while the inner layers are in better condition, which directly relates to the quality of external sealing.
· Abnormal sounds are a more obvious sign of failure. In some high-frequency environments, CBB capacitors emit crisp, frequent "clicking" sounds, indicating continuous internal self-healing discharge.
III. Causes of Failure
· Poor sealing is the primary factor. Low-quality epoxy resin encapsulation has poor sealing, allowing moisture to enter the capacitor, which can oxidize or peel off the metallized layer. Experiments show that poorly sealed capacitors degrade faster in humid environments.
· Exceeding electrical parameters is another common issue. Long-term overvoltage or excessive ripple current can cause internal heating and accelerate dielectric aging. Large instantaneous currents can trigger frequent self-healing events, continuously consuming the metallized electrode material.
· Side effects of self-healing should not be ignored. While self-healing prevents immediate short-circuit failure, repeated self-healing reduces the effective electrode area, causing capacitance to gradually decrease. Once capacitance drops beyond acceptable limits, the capacitor is considered failed.
· Manufacturing defects directly affect product quality. Some manufacturers use inferior materials to cut costs, such as insufficient metallized layer thickness, low-purity film, or poor terminal welding, all of which significantly reduce capacitor lifespan.
· Operating environment also matters. Long-term high temperatures accelerate dielectric aging, and thermal expansion/contraction caused by temperature fluctuations can damage internal structures, further affecting performance.
IV. Solutions
· Choose high-quality brands. Reputable manufacturers ensure better material selection, process control, and quality management, significantly reducing the risk of failure. Safety-certified capacitors (e.g., X2 series) usually offer superior voltage tolerance and reliability.
· Derating design is essential. Keep the working voltage below 80% of the rated value and avoid operating at extreme limits. Experiments show that proper derating can extend capacitor life by several times.
· Improve circuit protection. Using suitable varistors can suppress voltage surges, and series resistors can reduce instantaneous currents. These measures relieve electrical stress on the capacitor.
· Enhance cooling conditions. In circuit layout, keep CBB capacitors away from heat-generating components and ensure good ventilation. For high-power applications, additional heat dissipation measures may be necessary.
· Regular inspection and maintenance. Periodically measure capacitance and tangent delta (loss angle) to detect performance degradation. For critical circuits, establishing a preventive replacement schedule is recommended.
V. Application Considerations
· In oscillating circuits or other scenarios requiring highly stable capacitance, if CBB capacitors cannot meet requirements, consider replacing them with metal-foil capacitors.
· Avoid mechanical stress during installation; excessive bending or compression can damage internal structures.
· Pay attention to storage conditions—keep capacitors dry and ventilated, avoiding high temperature and humidity.
· Be cautious when using salvaged capacitors; experiments show their performance is often significantly reduced.
VI. Conclusion
CBB metallized film capacitors do experience failures, contrary to the initial perception of many people. Systematic experiments and analysis show that sealing quality, electrical stress, self-healing mechanisms, and manufacturing processes are the main factors affecting reliability. Using high-quality products, derating design, improving circuit protection, and performing regular maintenance can effectively extend the lifespan and reliability of CBB capacitors.
