EEF-CX0J101R: Features, Specs & More
In modern electronics, reliable capacitors are crucial for efficient circuit performance. The PANASONIC EEF-CX0J101R is a premium aluminum polymer capacitor designed for surface mount applications. This component combines high ripple current tolerance, low equivalent series resistance (ESR), and a compact low-profile design, making it an ideal choice for demanding electronic circuits. In this comprehensive article, we'll delve into the intricacies of the EEF-CX0J101R, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

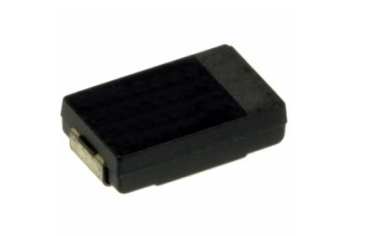

EEF-CX0J101R's Overview
The EEF-CX0J101R is a polymer aluminum capacitor produced by Panasonic. It is engineered to deliver stable performance in low-voltage circuits. With a capacitance of 100µF and a rated voltage of 6.3VDC, it is suitable for high-reliability electronics that require long operational life and thermal stability.
Key Features
Let's delve into the standout features that make the EEF-CX0J101R a standout in the world of electronics:
· The capacitor has a capacitance of 100µF for consistent energy storage.
· It operates at a voltage of 6.3VDC with a tolerance of ±20%.
· The low equivalent series resistance is 0.015 Ohms for minimal energy loss.
· It supports a ripple current of 5.1A, ensuring robust performance under load.
· The operating temperature ranges from -55°C to 105°C for versatility in harsh environments.
· It features a flat construction for low-profile, space-saving designs.
· The capacitor is polar, with clear positive and negative terminals.
· High reliability is ensured with a lifetime rating of 2000 hours at 105°C.
· Surface mount packaging with tape and reel facilitates automated assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the EEF-CX0J101R:
Type | Parameter |
Type | Polymer |
Capacitance Value | 100uF |
Tolerance | 20% |
Voltage | 6.3VDC |
ESR (Ohm) | 0.015 |
Equivalent Series Resistance Type | Low |
IR (mA) | 5.1 |
IL (uA) | 63@2Min |
Lifetime (H) | 2000 |
Polarity | Polar |
Special Features | High Ripple Current|High Voltage|Low Profile |
Construction | Flat |
Mounting | Surface Mount |
Maximum Terminal Width (mm) | 4.5 |
Number of Terminals | 2 |
Size (mm) | 7.3 X 4.3 X 1.9 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Product Length (mm) | 7.3 |
Product Depth (mm) | 4.3 |
Product Height (mm) | 1.9 |
Applications
The PANASONIC EEF-CX0J101R is ideal for:
· High-performance power supply circuits.
· Voltage smoothing and decoupling in industrial electronics.
· Compact consumer electronics requiring stable power delivery.
· Automotive electronic modules with high ripple current demands.
· IoT and embedded devices where space-saving SMD capacitors are critical.
EEF-CX0J101R's Manufacturer
Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.
Conclusion
The PANASONIC EEF-CX0J101R is a high-performance aluminum polymer capacitor suitable for demanding electronic applications. Its compact size, low ESR, high ripple current tolerance, and long lifespan make it a reliable choice for engineers designing modern electronics. When selecting a capacitor for surface-mount circuits, the EEF-CX0J101R offers unmatched performance and consistency.
