Hall Element vs Hall Switch: What's the Difference?

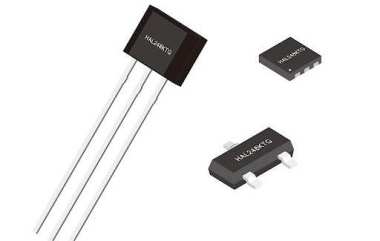

Hall effect devices play a crucial role in modern electronics, especially the two main types: Hall elements and Hall switches. Although both are based on the Hall effect, they differ significantly in structure, function, and applications. For electronic engineers and product designers, understanding these differences is essential for selecting and using these components correctly. This article will provide a detailed look at the differences between Hall elements and Hall switches.
Catalog
I. What are Hall Elements and Hall Switches?
II. Differences Between Hall Elements and Hall Switches
III. Choosing Between Hall Elements and Hall Switches
I. What are Hall Elements and Hall Switches?
A Hall element is a basic semiconductor device that utilizes the Hall effect. According to the Hall effect principle, when a current-carrying metal or semiconductor plate is placed perpendicular to a magnetic field, a voltage difference appears across the two ends of the plate. This phenomenon is called the Hall effect. Hall elements exploit this principle to create magnetic-sensitive devices, where the output voltage is proportional to the strength of the external magnetic field.
A Hall switch, on the other hand, is an integrated device developed based on Hall elements. It combines a Hall element, signal amplifier, Schmitt trigger, and output stage into a single chip. The Hall switch operates by comparing the detected magnetic flux intensity with a predefined threshold, producing either a high or low output signal.
II. Differences Between Hall Elements and Hall Switches
Let's compare Hall elements and Hall switches across multiple dimensions.
1. Output Signal Type
· Hall Element: Typically outputs an analog signal, meaning the output voltage (or sometimes current) is proportional to the magnetic field strength.
· Hall Switch: Outputs a digital or logic signal. When the magnetic field strength crosses a predefined threshold, the device switches from “off” to “on,” or vice versa.
This makes “analog output vs. switch output” a useful keyword distinction when designing circuits or writing technical content.
2. Working Principle
· Hall Element: Its circuitry usually includes a bias current source, the Hall plate, an amplifier (often differential), and temperature compensation and calibration circuits.
· Hall Switch: Builds on the Hall element by adding a comparator/Schmitt trigger, internal threshold circuits, possible hysteresis to prevent output jitter, and a transistor or open-collector output stage.
From a design perspective, Hall elements lean toward analog front-end measurement circuits, requiring linearity, sensitivity, and minimal drift, while Hall switches focus on digital interfacing, reliable on/off operation, noise immunity, and anti-chattering features.
3. Response Characteristics
The response of Hall elements mainly involves parameters like sensitivity, linearity, and temperature stability. Hall elements made from different materials show different characteristics—for example, gallium arsenide Hall elements offer better temperature stability, while indium antimonide elements provide higher sensitivity.
Key parameters for Hall switches include the operating point, release point, and hysteresis. Hysteresis, the difference between the operating and release points, prevents output jitter near the threshold, improving noise immunity.
4. Cost
The unit price of Hall elements may be low, but they usually require external signal processing circuits, making the overall system cost higher. Additionally, debugging and calibrating these external circuits adds extra labor costs.
Hall switches are generally more expensive per unit, but since they reduce the number of external components and setup time, they often result in a lower overall system cost in mass production.
5. Application Scenarios
· Hall Element: Suitable for applications requiring continuous and precise measurement of magnetic fields, displacement, angles, or current. Examples include current sensors, linear displacement measurement, angle encoders, precision motor control, and magnetic flux density measurement.
· Hall Switch: Suitable for applications that need to detect whether a magnetic field exists or if its strength has reached a threshold. Examples include door detection, proximity switches, speed pulse detection, automotive sensors (e.g., shaft or rotor position detection), appliance door switches, and limit switches.
III. Choosing Between Hall Elements and Hall Switches
When selecting a sensor, consider the following:
Requirement Analysis: Determine whether your application needs an analog or digital signal.
Cost Consideration: Evaluate your project budget and cost-effectiveness.
Design Complexity: Assess the complexity and maintainability of the circuit design.
Response Requirement: Choose a sensor that meets the response speed required for your application.
IV. Conclusion
Although Hall elements and Hall switches are based on the same physical effect, their design goals give them distinct characteristics and advantages. Hall elements provide analog output, making them ideal for precise measurement applications, while Hall switches provide digital output, making them suitable for simple switch detection tasks. In practical selection, engineers need to consider measurement requirements, system complexity, budget, and working environment to choose the most appropriate sensor type. With ongoing technological advances, both types continue to improve, offering better solutions for electronic system design.
