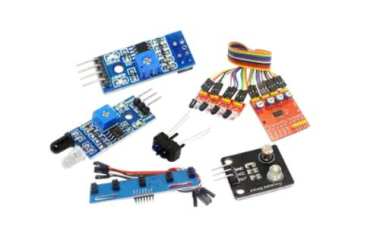

What Are Photoelectric Switches?
On an automated production line, a seemingly insignificant component can determine the efficiency and reliability of the entire system—this is exactly the role of the photoelectric switch. In modern industrial automation, photoelectric switches have become essential components due to their high precision and non-contact detection capabilities. According to the latest industry analysis, global shipments of photoelectric switches are expected to exceed 3.5 billion units by 2025, reflecting their widespread demand and critical role in industrial applications. This article provides a comprehensive analysis of photoelectric switches, covering their definition, working principle, features, applications, and more.
Catalog
I. What Are Photoelectric Switches?
I. What Are Photoelectric Switches?
A photoelectric switch, also known as a photoelectric proximity switch, is an electronic component that detects objects using the principle of photoelectric sensing. It works by converting changes in light intensity into corresponding electrical signals. As a non-contact travel switch, a photoelectric switch does not need to physically touch the object being detected to send a signal. This gives it a longer service life, higher operating frequency, and faster, more reliable response compared to traditional mechanical switches.
Photoelectric switches are products of modern microelectronics, combining advances in optics, electronics, and semiconductor technology. They can detect the presence and movement of solids, liquids, transparent materials, black bodies, soft objects, smoke, and more, enabling truly non-damaging detection and control.
II. Working Principle
The basic principle of a photoelectric switch is based on the emission and reception of light. A complete photoelectric switch system typically consists of three main parts: the emitter, the receiver, and the detection circuit.
· Emitter: The emitter directs a light beam toward the target. The light source is usually a semiconductor, such as an LED, laser diode, or infrared LED. The beam can be emitted continuously or modulated using pulse width changes.
· Receiver: The receiver is usually composed of a photodiode, phototransistor, or photovoltaic cell. Optical components such as lenses or apertures are often placed in front of the receiver to focus and adjust the incoming light.
· Detection Circuit: The detection circuit filters out valid signals and applies them for switching. It typically includes signal amplifiers, gating circuits, detectors, and shaping circuits.
When the object enters the light path, it either blocks or reflects the light, causing the intensity received by the receiver to change. The receiver senses this change, and the detection circuit processes it, ultimately outputting a switch signal to determine whether the object is present.
III. Main Types
Photoelectric switches can be divided into several types based on detection method and structure, each suited for specific applications:
· Through-beam (Opposed) Switches: These switches have separate emitter and receiver units aligned along the same optical axis. The emitter directs light toward the receiver. When an object passes between them and interrupts the beam, the switch triggers. This type offers the longest detection distance, often tens of meters, and strong resistance to interference, making it ideal for outdoor or dusty environments.
· Reflective Switches: Reflective switches include retro-reflective and diffuse-reflective types. Retro-reflective switches integrate the emitter and receiver in one unit with a reflector in front. The emitted light reflects back to the receiver, and if an object blocks the beam, the switch activates. Diffuse-reflective switches also combine emitter and receiver but use the object’s surface to reflect light back. When enough light is reflected, the switch changes state.
· Slot (U-shaped) Switches: These switches have a standard U-shaped design, with the emitter and receiver on opposite sides of the slot, forming an optical axis. When an object passes through the slot and blocks the beam, a switch signal is triggered. This design is ideal for detecting high-speed objects and can distinguish between transparent and semi-transparent materials.
IV. Features and Advantages
Photoelectric switches are widely used in industrial automation thanks to their significant features:
· Non-contact Detection: Avoids physical wear, extending service life.
· High Precision and Fast Response: Capable of detecting fast-moving objects and small position changes.
· Strong Reliability: Resistant to dust, oil, and mild vibrations.
· Versatile Adaptability: Multiple types are available to meet different scenarios, including long-distance, high-precision, narrow-gap, or extreme environments.
· Long Lifespan: No mechanical contacts reduce failure rates and maintenance costs.
V. Applications
Photoelectric switches have a broad range of applications across industrial automation:
· Industrial Automation: Object counting, positioning, and pacing on production lines, as well as robotic and mechanical arm detection.
· Logistics and Warehousing: Detecting objects on conveyor belts and monitoring packages in sorting systems.
· Security Systems: Automatic doors, access control systems, and light curtain intrusion detection.
· Smart Devices and Home Appliances: Automatic sensing switches, smart elevators, and escalator detection.
· Special Environments: Non-contact detection in high-temperature areas, cleanrooms, and food or pharmaceutical industries.
VI. Conclusion
As a critical sensor in the electronics industry, the photoelectric switch plays a vital role in industrial automation, logistics, security, and smart devices due to its non-contact detection, high precision, fast response, and long lifespan. With ongoing technological advancements, photoelectric switches are expected to become smarter, more compact, and higher-performing, supporting the future of intelligent manufacturing and the Internet of Things.
