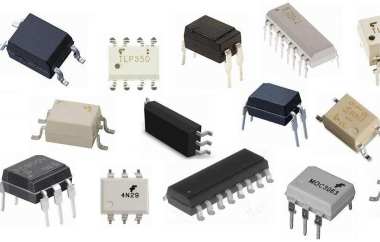

Photoelectric Switch or Relay: What's the Difference?
In automation control and electronic equipment, photoelectric switches and photoelectric relays both play important roles, but their functions and applications are fundamentally different. In the field of electronic components, these two devices are common and often easily confused. Although both involve photoelectric conversion technology, they have significant differences in working principles and application scenarios. If you are selecting components, maintaining equipment, or designing automation systems, this article will help you quickly and accurately understand the essential differences between them.
Catalog
I. Photoelectric Switch
A photoelectric switch is a sensor that detects the presence or passage of objects by monitoring changes in a light beam. It is a non-contact detection device and holds an important place in the field of automation.
1. Working Principle
The core principle of a photoelectric switch is based on a complete photoelectric detection system. The emitter sends out a light beam of a specific wavelength, usually from an LED or a laser diode. The receiver, composed of a photodiode or phototransistor, is equipped with an optical lens system. When the object being measured enters the detection area and alters the light beam, the receiver senses this change, and the detection circuit converts the light signal into an electrical output.
2. Types
Photoelectric switches are classified by detection method. A through-beam switch has separate emitter and receiver, offering the highest reliability. A diffuse-reflective switch detects objects by the light reflected off their surface and is easy to install. A retro-reflective switch uses a dedicated reflector, providing strong resistance to interference. A slot-type switch has a U-shaped structure, ideal for high-speed detection. A fiber-optic switch conducts light through optical fibers and is suitable for special environments.
II. Photoelectric Relay
A photoelectric relay is a solid-state relay that uses photoelectric coupling technology to control circuits. It achieves electrical isolation between input and output through light signals, offering advantages that traditional electromagnetic relays cannot match.
1. Working Principle
The working principle of a photoelectric relay relies on an electric-to-light-to-electric conversion process. The input electrical signal drives an LED to emit invisible light. A photosensitive device receives the light and generates photocurrent, which is then amplified to control the output circuit. This process achieves complete electrical isolation between input and output, ensuring safe control.
2. Features
Photoelectric relays have several notable features. They use an entirely solid-state design with no mechanical contacts, achieving lifespans of up to billions of operations. They require very low control power, allowing operation with minimal input current. Their response is fast, with DC models reaching microsecond-level response times. They have strong resistance to electromagnetic interference and produce no sparks. The insulation resistance between input and output is high, often exceeding 1000 MΩ.
III. Application Comparison
· Photoelectric switches are mainly used in detection and sensing applications. In industrial production, they are used for level detection, product counting, speed monitoring, length cutting, and other process tasks. In safety protection, they are applied in automatic door sensors, area safety monitoring, and hazardous zone warnings. In equipment control, they are used for position detection, motion monitoring, and as mechanical limit replacements.
· Photoelectric relays focus on circuit control. In power systems, they are used for signal switching, circuit isolation, and power control. In industrial automation, they serve for PLC output, device start/stop control, and signal conversion. In communication equipment, they provide signal isolation, interface protection, and noise suppression. In medical devices, they are used for patient isolation and safety protection.
IV. Conclusion
Although both photoelectric switches and photoelectric relays use the photoelectric effect, they are fundamentally different in design and application. Photoelectric switches are used to detect the presence and movement of objects, interacting directly with the target. Photoelectric relays are used to control circuits, achieving safe isolation between input and output. Choosing the right device depends on the specific application requirements and system design needs. By understanding their working principles, types, and features, engineers and technicians can select the appropriate photoelectric components for different scenarios, ensuring efficient and reliable automation control.
