Does Poor Crystal Accuracy Cause Circuit Instability?
In the field of electronic engineering, a precise and stable clock signal is the foundation for a system's reliable operation, and all of this depends on a small yet crucial component: the crystal oscillator. As a key clock source, the performance of a crystal oscillator directly affects the functioning of the entire circuit. Many engineers often wonder during the design process: does poor crystal oscillator accuracy really lead to unstable circuits? This article dives into this question, exploring everything from basic principles to practical applications, and fully explains the connection between crystal accuracy and circuit stability.
Catalog
I. What is a Crystal Oscillator?
II. How Crystal Accuracy Affects System Stability
III. System Stability Requirements for Crystal Accuracy
IV. The Relationship Between Crystal Stability and Accuracy
V. Measures to Improve Crystal Accuracy and Stability
I. What is a Crystal Oscillator?

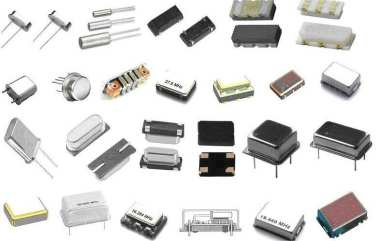

A crystal oscillator, commonly called a "crystal," is a core component in modern electronic devices that provides precise clock signals. It works by converting electrical energy into mechanical vibrations using the piezoelectric effect of quartz crystals.
When an alternating voltage is applied to the crystal's electrodes, it induces mechanical vibrations at a specific frequency. These vibrations are amplified by a circuit to produce a stable oscillating signal. Crystal oscillators generally come in two types: passive crystals and active crystal oscillators.
· Passive Crystals (Crystal Resonators) contain only the quartz crystal and require an external oscillation circuit to generate a clock signal. They are small, cost-effective, and commonly found in consumer electronics and small appliances.
· Active Crystal Oscillators integrate the crystal and oscillation circuit, producing a specific waveform output with just a power supply. They offer high stability and fast startup, making them ideal for automotive electronics, communication equipment, and other applications demanding high performance.
II. How Crystal Accuracy Affects System Stability
The accuracy of a crystal directly determines how precise the system clock signal is. High-accuracy crystals provide a more exact clock signal, ensuring precise time synchronization and data processing. On the other hand, low-accuracy crystals can introduce deviations in the system clock, leading to a series of stability issues.
In communication systems, even minor clock deviations can significantly increase data transmission error rates, directly affecting communication quality. For applications requiring precise timing, such as industrial automation, insufficient crystal accuracy can cause control commands to execute at the wrong times, impacting overall system precision. In digital signal processing systems, clock deviations can lead to sampling errors, resulting in signal distortion and data loss.
III. System Stability Requirements for Crystal Accuracy
As electronic systems become increasingly complex, the demand for high-accuracy crystals grows. In high-performance computing, communication devices, and precision control systems, high-accuracy crystals are required to ensure that clock signals are both precise and stable. Typically, these systems require crystal accuracy within ±10 ppm or even tighter.
Different applications have different accuracy requirements. Consumer electronics may tolerate ±20–50 ppm, while base station communication equipment often demands accuracy within ±0.5 ppm. Medical electronics, where reliability is critical, usually require high-accuracy crystals within ±2 ppm.
IV. The Relationship Between Crystal Stability and Accuracy
Crystal stability and accuracy are closely linked. High-accuracy crystals generally exhibit better stability and can maintain their frequency under varying environmental conditions and operating states. Conversely, crystals with poor stability often cannot sustain their nominal accuracy, as frequency fluctuations directly increase the deviation between the output and nominal frequency.
Temperature changes are the primary factor affecting crystal stability. Standard crystals typically show a quadratic frequency-temperature characteristic, with minimal variation at normal temperatures but larger deviations under extreme temperatures. Voltage fluctuations also affect the output frequency through the crystal's frequency-pulling coefficient, further influencing accuracy.
V. Measures to Improve Crystal Accuracy and Stability
To enhance the accuracy and stability of a crystal oscillator, manufacturers and designers can adopt several effective strategies:
· Use high-Q crystal materials: Crystals with a high quality factor (Q) offer better vibration performance and stability, providing a solid foundation for high-accuracy oscillators.
· Advanced packaging techniques: Reducing environmental influence on the crystal—such as using metal hermetic packages—helps protect against humidity and temperature changes.
· Temperature compensation: Incorporating temperature-compensated circuits can significantly improve accuracy. TCXOs adjust frequency in real-time via temperature sensors and compensation networks, achieving accuracy levels around ±0.5 ppm. OCXOs maintain the crystal in a constant-temperature environment, achieving ultra-high precision down to ±0.1 ppb.
· Interference mitigation: Proper power decoupling, signal isolation, and grounding can reduce electromagnetic interference, improving operational stability.
· Rigorous testing and selection: Ensuring products meet accuracy and stability requirements through aging tests to eliminate early failures and temperature cycling to verify environmental adaptability.
VI. Conclusion
There is a direct cause-and-effect relationship between crystal accuracy and circuit stability. As electronic systems become more precise, selecting crystals with the appropriate accuracy and implementing effective stability measures has become essential for reliable operation. By thoroughly understanding crystal operation and characteristics, designers can make better component choices and circuit designs, ultimately creating more stable and dependable electronic products.
