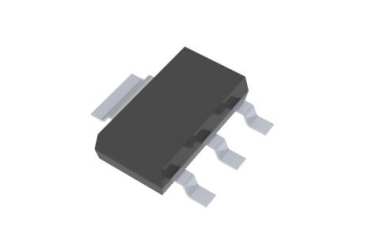

BSP62H6327XTSA1: Features, Specs & More
When designing automotive or industrial systems, choosing a reliable transistor is critical for ensuring performance, safety, and long-term stability. Infineon Technologies' BSP62H6327XTSA1 stands out as a compact, high-gain PNP Darlington transistor designed specifically for demanding power switching and signal amplification tasks. In this comprehensive article, we'll delve into the intricacies of the BSP62H6327XTSA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
BSP62H6327XTSA1's Manufacturer
BSP62H6327XTSA1's Overview
The BSP62H6327XTSA1 is a PNP Darlington transistor with a single dual collector configuration. It provides high current gain, low saturation voltage, and strong thermal stability. Infineon Technologies manufactures this transistor for automotive and industrial applications, focusing on reliability, performance, and surface-mount compatibility. Its tape-and-reel packaging ensures easy handling in automated PCB assembly processes.
Key Features
Let's delve into the standout features that make the BSP62H6327XTSA1 a standout in the world of electronics:
· The transistor delivers strong current amplification because the device uses a PNP Darlington configuration.
· The transistor supports high voltage operation because the collector-emitter voltage reaches up to 80V.
· The transistor maintains reliable switching performance because the device offers a continuous collector current of 1A.
· The transistor provides exceptional gain stability because the minimum DC current gain reaches 2000 at 500mA and 10V.
· The transistor dissipates heat efficiently because the maximum power dissipation is 1500mW.
· The transistor withstands harsh environments because the operating temperature ranges from −65°C to 150°C.
· The transistor optimizes board space because it comes in a compact SOT-223 surface-mount package.
· The transistor ensures compliance with automotive reliability standards because it meets AEC-Q101 requirements.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the BSP62H6327XTSA1:
Type | Parameter |
Type | PNP |
Configuration | Single Dual Collector |
Number of Elements per Chip | 1 |
Maximum Collector-Emitter Voltage (V) | 80 |
Maximum Collector Base Voltage (V) | 90 |
Maximum Emitter Base Voltage (V) | 5 |
Maximum Base Emitter Saturation Voltage (V) | 1.9@0.5mA@500mA|2.2@1mA@1A |
Maximum Continuous DC Collector Current (A) | 1 |
Typical Current Gain Bandwidth (MHz) | 200 |
Maximum Collector-Emitter Saturation Voltage (V) | 1.3@0.55mA@500mA|1.8@1mA@1A |
Minimum DC Current Gain | 1000@150mA@10V|2000@500mA@10V |
Maximum Power Dissipation (mW) | 1500 |
Minimum Operating Temperature (°C) | -65 |
Maximum Operating Temperature (°C) | 150 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.6 mm |
Package Width | 3.5 mm |
Package Length | 6.5 mm |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | SOT |
Supplier Package | SOT-223 |
Pin Count | 4 |
Lead Shape | Gull-wing |
Applications
The BSP62H6327XTSA1 serves a wide range of automotive and industrial circuits, including:
· Low-side and high-side load switching
· Sensor interface circuits
· Motor or actuator control stages
· Current-boosting drivers
· Signal amplification paths
· General power management circuits
· Automotive ECUs and body electronics systems
BSP62H6327XTSA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon BSP62H6327XTSA1 is a robust PNP Darlington transistor optimized for high-gain, high-reliability automotive and industrial applications. With its strong electrical performance, AEC-Q101 qualification, and space-efficient SOT-223 package, it provides engineers with a dependable solution for power switching, signal amplification, and control electronics. Whether you are building next-generation automotive platforms or designing compact industrial modules, this transistor delivers the performance and consistency needed for mission-critical systems.
