The Littelfuse S6004VS2TP is a high-performance silicon-controlled rectifier (SCR) designed for reliable power control in electronic circuits. This component is engineered to manage high voltages and currents while providing precise switching capabilities. In this comprehensive article, we'll delve into the intricacies of the S6004VS2TP, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
S6004VS2TP's Overview

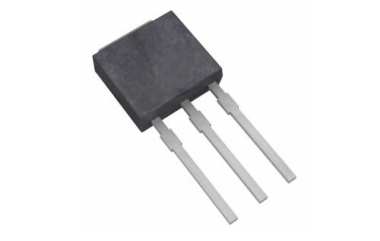

The S6004VS2TP is a thyristor SCR rated at 600 volts and 30 amperes. It features a 3-pin configuration with an additional tab, housed in a TO-251AA through-hole package. SCRs like the S6004VS2TP are widely used to control high-power electrical devices by switching them on and off with precision.
Key Features
Let's delve into the standout features that make the S6004VS2TP a standout in the world of electronics:
· The S6004VS2TP has a maximum on-state current rise rate of 50 A/µs.
· It features a maximum gate trigger voltage of 0.8V for fast switching.
· The device supports a maximum gate trigger current of 0.2mA.
· Its surge current rating is 30A, ensuring tolerance to transient loads.
· The SCR has a maximum holding current of 6mA to maintain conduction reliably.
· It provides a repetitive peak reverse voltage of 600V for enhanced circuit safety.
· The maximum gate peak inverse voltage is at least 6V.
· Peak on-state voltage is 1.6V at 12A for efficient power handling.
· It offers a repetitive peak forward blocking voltage of 600V.
· The rated average on-state current is 2.5A for continuous operation.
· The repetitive peak off-state current is only 0.002mA, minimizing leakage.
· This SCR does not support phase control.
· It operates in a wide temperature range from -40°C to 110°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the S6004VS2TP:
Type | Parameter |
Maximum Rate of Rise of On-State Current (A/us) | 50 |
Maximum Gate Trigger Voltage (V) | 0.8 |
Maximum Gate Trigger Current (mA) | 0.2 |
Surge Current Rating (A) | 30 |
Maximum Holding Current (mA) | 6 |
Repetitive Peak Reverse Voltage (V) | 600 |
Maximum Gate Peak Inverse Voltage (V) | 6(Min) |
Peak On-State Voltage (V) | 1.6@12A |
Repetitive Peak Forward Blocking Voltage (V) | 600 |
Rated Average On-State Current (A) | 2.5 |
Repetitive Peak Off-State Current (mA) | 0.002 |
Phase Control | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 110 |
Mounting | Through Hole |
Package Height | 6.2(Max) mm |
Package Width | 2.39(Max) mm |
Package Length | 6.63(Max) mm |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO |
Supplier Package | TO-251AA |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
The S6004VS2TP SCR is suitable for a variety of industrial and electronic applications:
· Power switching in industrial machinery.
· Motor control circuits requiring precise current handling.
· Surge protection for sensitive electronic devices.
· AC and DC load control in automation systems.
· Switching and rectification in high-current circuits.
S6004VS2TP's Manufacturer
Littlefuse, a prominent player in the electronic components industry, has established itself as a leading provider of innovative solutions for circuit protection, power control, and sensing applications. With a rich history dating back to its founding in 1927, Littlefuse has consistently been at the forefront of technological advancements, delivering high-quality and reliable products. Specializing in fuses, sensors, and other critical components, Littlefuse is renowned for its commitment to safety, efficiency, and cutting-edge design.
Conclusion
The Littelfuse S6004VS2TP is a robust and efficient SCR designed for high-power applications. Its combination of high voltage rating, surge current capacity, and compact TO-251AA package makes it an ideal choice for engineers seeking reliable and long-lasting components. This SCR ensures precise switching, strong thermal performance, and excellent protection for industrial and electronic systems.
