FS100R12PT4BOSA1: Features, Specs & More

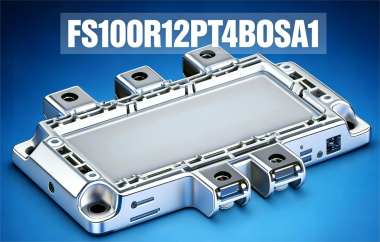

The Infineon Technologies FS100R12PT4BOSA1 is a high-performance IGBT power module designed for demanding industrial and energy applications. It combines high voltage capability, robust current handling, and a compact ECONO4-1 package, making it a reliable choice for modern power conversion systems. In this comprehensive article, we'll delve into the intricacies of the FS100R12PT4BOSA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
FS100R12PT4BOSA1's Manufacturer
FS100R12PT4BOSA1's Overview
The FS100R12PT4BOSA1 is an N-channel IGBT power module with a hex configuration optimized for high-current and high-voltage switching applications. It integrates multiple IGBT and diode elements into a single ECONO4-1 package to simplify system design and improve electrical and thermal performance.
Key Features
Let's delve into the standout features that make the FS100R12PT4BOSA1 a standout in the world of electronics:
· The module supports a maximum collector-emitter voltage of 1200V.
· The device provides a maximum continuous DC collector current of 135A.
· The typical collector-emitter saturation voltage is 1.75V.
· The module operates reliably across a wide temperature range from −40°C to 150°C.
· The ECONO4-1 package enables compact system layouts and efficient thermal management.
· The design supports a maximum gate-emitter voltage of ±20V.
· The module is suitable for screw mounting to ensure mechanical stability.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the FS100R12PT4BOSA1:
Type | Parameter |
Channel Type | N |
Configuration | Hex |
Typical Collector-Emitter Saturation Voltage (V) | 1.75 |
Maximum Collector-Emitter Voltage (V) | 1200 |
Maximum Power Dissipation (mW) | 500 |
Maximum Gate Emitter Voltage (V) | ±20 |
Maximum Continuous DC Collector Current (A) | 135 |
Maximum Gate Emitter Leakage Current (uA) | 0.1 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tray |
Mounting | Screw |
Package Height | 17 |
Package Width | 103 |
Package Length | 130 |
PCB changed | 20 |
Supplier Package | ECONO4-1 |
Pin Count | 20 |
* FS100R12PT4BOSA1's Datasheet
Applications
The FS100R12PT4BOSA1 is designed for industrial and commercial power electronics systems. Typical applications include:
· Motor drives and industrial inverters.
· Power supplies for renewable energy systems.
· UPS (Uninterruptible Power Supply) units.
· Electric vehicle charging stations.
· Traction and rail transport power systems.
FS100R12PT4BOSA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon FS100R12PT4BOSA1 IGBT module is a robust and efficient choice for high-power industrial applications requiring 1200V blocking capability and high current handling. With its low saturation voltage, wide temperature tolerance, and industry-standard ECONO4-1 package, it enables designers to build reliable, scalable, and energy-efficient power systems. For engineers and procurement teams seeking a proven IGBT module for demanding applications, the FS100R12PT4BOSA1 represents a dependable long-term solution.
