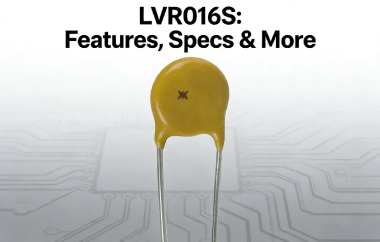

LVR016S: Features, Specs & More
When it comes to protecting sensitive electronics from overcurrent conditions, the Littlefuse LVR016S offers dependable performance. This PTC resettable fuse is compact, efficient, and ideal for safeguarding circuits against short-term current spikes. Its robust design makes it a preferred choice for engineers, designers, and electronics manufacturers seeking both safety and reliability. In this comprehensive article, we'll delve into the intricacies of the LVR016S, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LVR016S's Overview
The Littlefuse LVR016S is a PTC (Positive Temperature Coefficient) resettable fuse. It is engineered to limit current automatically when the circuit exceeds its rated values. Unlike traditional fuses that must be replaced after a fault, the LVR016S resets itself once the overcurrent condition clears. This feature reduces maintenance costs and enhances system reliability.
Key Features
Let's delve into the standout features that make the LVR016S a standout in the world of electronics:
· The fuse has a hold current of 0.16A, allowing safe normal operation.
· It trips at 0.37A, protecting circuits from overcurrent damage.
· The maximum voltage rating is 240VAC, suitable for a wide range of AC applications.
· It can handle a maximum current of 2A, ensuring protection against spikes.
· The typical power dissipation is 1.4W, maintaining stability during operation.
· It offers a maximum trip time of 15 seconds at 0.8A, allowing prompt response to faults.
· The fuse uses a radial termination style with two terminals for through-hole mounting.
· Operating temperatures range from -20°C to 85°C, providing flexibility across environments.
· Its compact size of 9.9 x 3.8mm ensures it fits in space-constrained designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LVR016S:
Type | Parameter |
Maximum Voltage Rating | 240VAC |
Maximum Current Rating (A) | 2 |
Hold Current (A) | 0.16 |
Trip Current (A) | 0.37 |
Minimum Initial Resistance (Ohm) | 2.5 |
Maximum Initial Resistance (Ohm) | 4.1 |
Maximum Post Trip Resistance (Ohm) | 7.8 |
Typical Power Dissipation (W) | 1.4 |
Maximum Trip Time (S) | 15@0.8A |
Termination Style | Radial |
Terminal Pitch (mm) | 5.8(Max) |
Number of Terminals | 2 |
Minimum Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Bag |
Size (mm) | 9.9 X 3.8 |
Wire Form | Straight |
Lead Diameter (mm) | 0.51 |
Product Diameter (mm) | 9.9(Max) |
Product Depth (mm) | 3.8(Max) |
Seated Plane Height (mm) | 12.5(Max) |
Mounting | Through Hole |
Applications
The LVR016S is ideal for protecting low-current circuits in consumer electronics.
· It is commonly used in power adapters to prevent overcurrent damage.
· The fuse safeguards computer peripherals and communication devices.
· It is suitable for LED lighting circuits and small household electronics.
· It provides reliable protection in automotive electronics and battery packs.
· The resettable design reduces maintenance and replacement costs.
LVR016S's Manufacturer
Littlefuse, a prominent player in the electronic components industry, has established itself as a leading provider of innovative solutions for circuit protection, power control, and sensing applications. With a rich history dating back to its founding in 1927, Littlefuse has consistently been at the forefront of technological advancements, delivering high-quality and reliable products. Specializing in fuses, sensors, and other critical components, Littlefuse is renowned for its commitment to safety, efficiency, and cutting-edge design.
Conclusion
For engineers and electronics designers, the Littlefuse LVR016S provides robust overcurrent protection in a small, reliable package. Its PTC resettable design, wide voltage range, and ease of integration make it a top choice in consumer, industrial, and commercial electronics. Protect your circuits efficiently and safely with the LVR016S.
