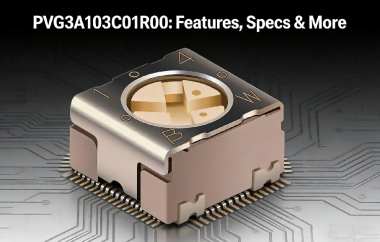

PVG3A103C01R00: Features, Specs & More
In precision analog design, fine adjustment components often determine the difference between stable performance and field returns. The PVG3A103C01R00 is a compact surface-mount cermet trimmer resistor engineered for accurate resistance tuning in space-constrained PCB layouts. With a 10KΩ nominal value, 0.25W power rating, and J-hook SMD termination, this device is optimized for automated assembly and post-production calibration across industrial, consumer, and instrumentation electronics. In this comprehensive article, we'll delve into the intricacies of the PVG3A103C01R00, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PVG3A103C01R00's Overview
The PVG3A103C01R00 is a single-turn, surface-mount cermet trimmer potentiometer rated at 10K ohms with ±20% tolerance and 0.25W power dissipation, designed for linear resistance adjustment via top-side actuation and featuring J-hook terminations for reflow solder compatibility in automated PCB assembly processes.
Key Features
Let's delve into the standout features that make the PVG3A103C01R00 a standout in the world of electronics:
· The PVG3A103C01R00 has a resistance value of 10K ohms.
· It offers a tolerance of 20% for flexible design margins.
· The trimmer has a power rating of 0.25W, supporting low-power applications.
· It uses cermet technology, ensuring stable performance across temperatures.
· The operating temperature range spans -55°C to 125°C.
· It has a temperature coefficient of ±150 ppm/°C.
· The resistance is linear, providing predictable adjustment behavior.
· The termination style is J-Hook, suitable for surface mounting.
· The shaft diameter is 2.2 mm, allowing precise adjustment.
· The trimmer completes 1 electrical turn and 1 mechanical turn.
· It has an electrical rotation of 210° and a mechanical rotation of 250°.
· The mechanical life cycle is rated at 50 cycles, ensuring durability.
· Its packaging is tape and reel, ideal for automated assembly.
· The dimensions are 3.6 × 3.6 × 2 mm, fitting compact PCBs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PVG3A103C01R00:
Type | Parameter |
Type | Trimmer |
Resistance Value (Ohm) | 10K |
Tolerance | 20% |
Power Rating (W) | 0.25 (1/4) |
Technology | Cermet |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Temperature Coefficient (ppm/°C) | ±150 |
Linear or Logarithmic | Lin |
Termination Style | J-Hook |
Positions of Adjustment | Top |
Shaft Diameter (mm) | 2.2 |
Number of Turns (Turns) | 1(Elec)|1(Mech) |
Number of Elements | 1 |
Electrical Rotation (°) | 210 |
Number of Electrical Turns (Turns) | 1 |
Mechanical Rotation (°) | 250 |
Mechanical Rotational Life (Cycles) | 50 |
Number of Mechanical Turns (Turns) | 1 |
Packaging | Tape and Reel |
Product Length (mm) | 3.6 |
Product Depth (mm) | 3.6 |
Product Height (mm) | 2 |
Mounting | Surface Mount |
Applications
The PVG3A103C01R00 is widely used in:
· Precision calibration circuits in industrial electronics.
· Adjustable gain control in audio equipment.
· Sensor circuits requiring fine-tuning of resistance.
· Power management systems in compact electronics.
· Consumer electronics where space and reliability are key.
PVG3A103C01R00's Manufacturer
Founded in 1924, J.W. Miller Magnetics is a well-known supplier of custom and standard magnetic components with capabilities to meet short run or high volume production requirements. Products include a complete line of high-quality coils, chokes, inductors and transformers in both surface mount and through-hole configurations. JW Miller Magnetics was acquired by Bourns Inc. in May, 2006.
Conclusion
The PVG3A103C01R00 is a compact, reliable, and production-oriented 10KΩ cermet trimmer designed for precision PCB calibration. Its surface-mount J-hook configuration supports automated assembly, while its thermal stability and predictable performance make it suitable for industrial and consumer electronics applications.
