HVR3700001004FR500: Features, Specs & More

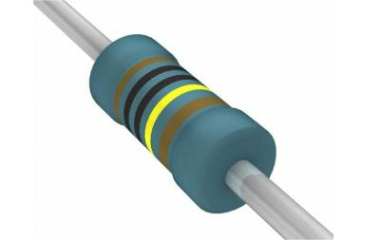

The Vish HVR3700001004FR500 is a high-precision metal film resistor from Phoenix Passive Components. It delivers reliable performance in demanding electronics applications. Designed for stability and durability, this resistor supports engineers in achieving consistent circuit behavior. With its robust ceramic case and axial lead configuration, it suits both prototyping and production environments. Its wide temperature range ensures dependable operation across various industrial and consumer electronics applications. In this comprehensive article, we'll delve into the intricacies of the HVR3700001004FR500, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
HVR3700001004FR500's Manufacturer
HVR3700001004FR500's Overview
The HVR3700001004FR500 is a 1M Ohm, 0.5W metal film resistor with ±1% tolerance. It is constructed on a ceramic axial body. This resistor is designed to offer precise resistance and minimal variation over temperature. It is widely used in high-voltage circuits due to its 3500V DC maximum rating. The product emphasizes quality, consistency, and long-term reliability for sensitive electronics systems.
Key Features
Let's delve into the standout features that make the HVR3700001004FR500 a standout in the world of electronics:
· The HVR3700001004FR500 resistor offers 1MΩ resistance.
· It provides a tolerance of 1% for precise electrical performance.
· The component supports a maximum voltage of 3500V DC or 2500V RMS.
· It has a power rating of 0.5 watts.
· The resistor is made with metal film technology for stability.
· It operates between -55°C and 155°C.
· It features a temperature coefficient of ±200ppm/°C.
· The resistor is housed in a ceramic cylindrical case.
· It uses an axial termination style with two terminals.
· It comes packaged in tape and reel for automated assembly.
· The product dimensions are 10mm length and 4mm diameter.
· It weighs 0.5 grams and has a lead diameter of 0.7mm.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the HVR3700001004FR500:
Type | Parameter |
Resistance Value (Ohm) | 1M |
Tolerance | 1% |
Maximum Voltage Rating (V) | 3500(DC)|2500(RMS) |
Power Rating (W) | 0.5 (1/2) |
Technology | Metal Film |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 155 |
Temperature Coefficient (ppm/°C) | ±200 |
Temperature Range @ Derated Power (°C) | 70 to 155 |
Fail Safe Fusible Resistor | No |
Flame-Proof Support | No |
Case Style | Ceramic |
Termination Style | Axial |
Number of Terminals | 2 |
Termination Forming | Not Formed |
Packaging | Tape and Reel |
Package Shape | Cylindrical |
Product Diameter (mm) | 4 |
Product Length (mm) | 10 |
Product Weight (g) | 0.5 |
Lead Diameter (mm) | 0.7 |
Mounting | Through Hole |
* HVR3700001004FR500's Datasheet
Applications
The HVR3700001004FR500 resistor is suitable for a variety of applications:
· Precision measurement circuits requiring stable resistance.
· High-voltage industrial electronics.
· Power supply regulation and control circuits.
· Aerospace and defense electronics requiring reliability.
· Laboratory instruments where exact resistance values are critical.
HVR3700001004FR500's Manufacturer
Vishay Phoenix Passive Components (formerly part of Philips, based in Brazil) is a major manufacturer of RoHS-compliant resistors and capacitors, specializing in over 50 years of experience with, and, custom solutions. As part of Vishay Intertechnology, they produce high-quality, durable components widely used in industrial, automotive, and consumer electronics.
Conclusion
The Vish HVR3700001004FR500 from Phoenix Passive Components combines precision, durability, and high-voltage tolerance. Its 1M Ohm resistance, ±1% tolerance, and wide operating temperature range make it suitable for demanding electronic applications. The metal film construction and ceramic axial packaging provide long-term reliability. Engineers can confidently select this resistor for industrial, consumer, and high-voltage projects. Its compact size, through-hole mounting, and tape-and-reel packaging ensure flexibility in design and assembly.
